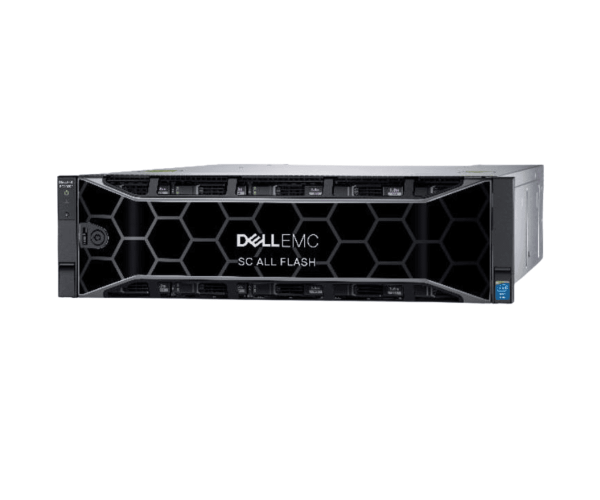

Dell EMC SC7020F All-Flash Storage Array

  • Product id:  23204
  • Stock: In Stock
  • Brand: Dell
  • Model: EMC SC7020F
WhatsApp Inquiry

Key Features

    • Max IOPS: Up to 1.2 Million
    • Max Read Throughput: Up to 29,000 MB/s
    • Drive Bays: 30 × 2.5″ hot-swap SAS SSD (12 Gbps)
    • System Memory: 256 GB (128 GB per controller)
    • Front-End Connectivity: 32 Gb Fibre Channel & 25 Gb iSCSI

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Crystal Vision Solutions not responsible for any results obtained from using this information.

Main Features
Type All‑Flash Storage Array
Processor Dual Intel Xeon E5‑2628 v3
Memory 256 GB
OS Compatibility VMware, Windows, Linux, Hyper‑V, Oracle
RAID Support 0, 1, 5, 6, 10, 10DM
Physical Specification
Dimensions ~13 × 44.5 × 78.3 cm
Weight ~36 kg fully loaded
Form Factor 3U Rackmount
Performance
Max IOPS 1.2 Million
Max Read Throughput 29,000 MB/s
Frequency 50/60 Hz
Encryption FIPS‑certified SEDs
Cache Up to 256 GB
Storage & Interfaces
Drive Bays 30 × 2.5″ SAS SSD
Drive Type 12 Gbps SAS SSD
Max Raw Capacity Up to 4 PB
Expansion Options Up to 606 drives via SC420F
Front-End Connectivity 32 Gb FC, 25 Gb iSCSI
Power Source
Power Supply Dual redundant 1378 W/1485 W
Input Voltage 200–240 V AC
Power Redundancy Yes

About This Dell EMC SC7020F All-Flash Storage Array

Dell EMC SC7020F is an enterprise-class, all-flash SAN storage array with high-end specifications. It includes dual active-active Intel Xeon processors, 256 GB of memory, and extremely high-speed SAS SSDs to offer 1.2 million IOPS and 29,000 MB/s performance. Multi-protocol front-end connectivity (32 Gb FC, 25 Gb/10 Gb iSCSI) and up to 606 drives support (≈4 PB raw) are offered with modular expansion.

Dell EMC SC7020F All-Flash Storage Array in BD

The EMC SC7020F All-Flash Storage Array solution is available from Dell EMC authorized partners in Bangladesh like Crystal Vision Solutions. Quote rapidly, order an in-country demonstration, or plan on-site deployment. Enterprise IT distributors stock and sell complete post-sales support without publicly posting prices.

Why Choose This EMC SC7020F All-Flash Storage Array?

Choose the SC7020F to power your data center with uncompromising speed, capacity, and reliability—all with advanced data services like thin provisioning, compression, dedupe, and encryption. Minute-to-minute uptime and low TCO through seamless scalability and active-active architecture.

Keeping This Product Running

  • On a regular basis, monitor with Dell Storage Manager for proactive alert and performance tuning.
  • Firmware & DSM update with SupportAssist.
  • Replace failed components (drives, PSUs, fans) with hot-swappable modules—no downtime required.
  • Use mirrored cache with battery-backed to prevent loss of data in case of a power outage.
  • Schedule frequent SAN health checks, like RAID rebuilds and disk integrity check.

User Experience of this Dell EMC SC7020F Storage Array

Companies praise the Dell EMC SC7020F for easy deployment with less overhead management. However, customers always have "lightning-fast database queries," "zero performance impact with maintenance," and "dramatic storage consolidation"—all under rock-solid enterprise guarantee.

In-Depth Analysis of Features & Benefits for EMC SC7020F

The SC7020F is packed with Intel Xeon dual-controller performance, 256 GB of RAM, 30 SAS SSD bays, and multi-protocol I/O, with unflinching scale and throughput. Software stack—SCOS, DSM, federation, encryption, compression, replication—is delivering automated efficiency, streamlined manageability, and rock-solid protection for your data. High capacity, fault-tolerant design, and high speed are paired with groundbreaking data services. Provides real-time tiering, secure multi-tenant workloads, and 24/7 availability with a lower storage footprint and TCO.

Why Choose Crystal Vision Solutions?

Crystal Vision Solutions stands out as the best supplier for your Dell Storage needs. Here’s why:

  • Genuine Products: We deal in absolutely original products.
  • Reasonable Pricing: We charge appropriately to make sure you get great value for your money.
  • Expert Support: Our experts are also ready to assist in choosing, installing, and problem-solving for the products.
  • Quick Delivery: Prompt and sure delivery to afford you less downtime for business.

Crystal Vision Solutions always delivers reliable and efficient service, ensuring you experience complete peace of mind.

Review

Get specific details about this product from customers who own it.

Questions

Have question about this product? Get specific details about this product from expert.

No questions have been asked about this product.

What is the Dell EMC SC7020F All-Flash Storage Array price in Bangladesh 2026?

The latest price of Dell EMC SC7020F All-Flash Storage Array in Bangladesh is 0৳. You can buy the Dell EMC SC7020F All-Flash Storage Array at best price from our website or visit any of our showrooms to make your purchase.
