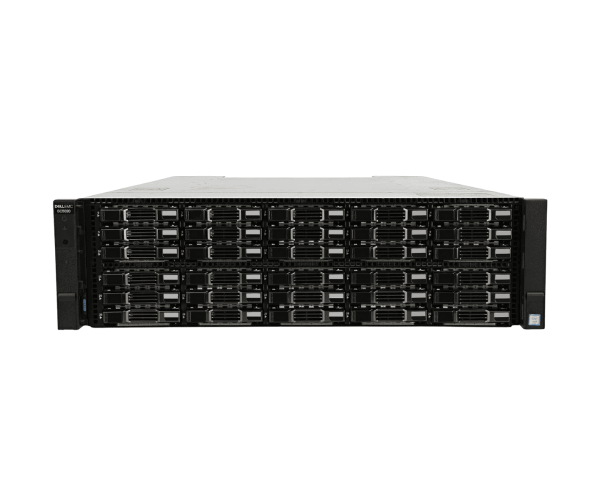

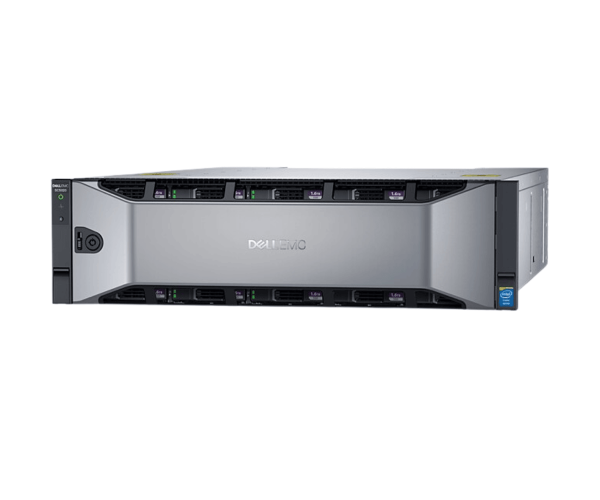

Dell EMC SC5020 Storage Array

  • Product id:  23206
  • Stock: In Stock
  • Brand: Dell
  • Model: SC5020
WhatsApp Inquiry

Key Features

    • Max IOPS: Up to 400K
    • Processor: Dual Intel Xeon E5‑2630 v3 (2.4 GHz, 8‑core)
    • System Memory: 128 GB (64 GB per controller)
    • Drive Bays: 30 × 2.5″ SAS hot-swappable (12 Gbps)
    • Max Raw Capacity: Up to 2 PB

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Crystal Vision Solutions not responsible for any results obtained from using this information.

Main Features
Type Enterprise SAN Storage Array
Processor Dual Intel Xeon E5‑2630 v3
Memory 128 GB
OS Compatibility SCOS 7.2+; supports VMware, Hyper-V, OpenStack, Oracle
RAID Support 0,1,5,6,10,10DM
Physical Specification
Dimensions ~13.3 × 44.5 × 78.5 cm
Weight ~15.2 kg empty
Form Factor 3U Rackmount
Performance
Max IOPS ~400K (SCOS 7.3)
Max Read Throughput ≈13 GB/s mixed workload
Frequency 50/60 Hz
Encryption Hardware/enclosure-managed encryption
Cache Battery-backed mirrored cache (size proportional)
Storage & Interfaces
Drive Bays 30 × 2.5″ SAS HDD/SSD
Drive Type 12 Gbps SAS (SSD or 15K/10K/7.2K HDD)
Max Raw Capacity 2 PB, expandable to 4 PB with FS8600 NAS
Expansion Options Up to 222 drives (30 internal + 192 external)
Front-End Connectivity Up to 8×32 Gb FC, 8×10/1 Gb iSCSI, plus SAS expansion ports
Power Source
Power Supply Dual 1485 W hot-swap PSUs
Input Voltage 200–240 VAC
Power Redundancy Yes (N+1)

About This Dell EMC SC5020 Storage Array

The Dell EMC SC5020 Storage Array is a multi-purpose enterprise 3U enclosure SAN solution that supports up to 30 hot-swappable 2.5″ 12 Gbps SAS HDDs or SSDs. Dual active–active Intel Xeon processor-based controllers and 128 GB RAM power it, supporting up to ~400K IOPS and sub-millisecond latency with SCOS 7.3. Huge capacity is highly supported—up to 2 PB raw, with expansion via SC420 and SC400 enclosures.

Dell EMC SC5020 Storage Array in BD

This EMC SC5020 Storage Array is imported into Bangladesh via official Dell EMC channel partners such as Crystal Vision Solutions. Get a quote, schedule a local demo, or schedule deployment and installation. Partners provide total post-sales support without quoting prices publicly.

Why Choose This EMC SC5020 Storage Array?

Choose the SC5020 Storage Array for scale-out performance, enterprise reliability, and smart data services. With automated tiering, dedupe/compression, federation, and strong encryption, it delivers uptime, efficiency, and business continuity with low TCO.

How to Keep This Dell EMC Storage Array Running

  • Monitor it carefully with Dell Storage Manager/Unisphere and CloudIQ analytics.
  • Firmware and controllers update in real-time via SupportAssist.
  • Hot-swap failed drives, power modules, or controllers with zero downtime.
  • Run periodic health checks: RAID health, cache battery life.
  • Use empty drive letters as placeholders to obtain effective airflow and cooling.

User Experience of this Dell SC5020 Storage Array

Technologists love the Dell SC5020 Storage Array for plug-and-play expansion, simple maintenance, and solid Dell support. Users enjoy "lightning-fast mixed workloads," "silent failover during updates," and sophisticated data consolidation—all with peak efficiency.

In-Depth Breakdown of Features & Benefits for EMC SC5020

The SC5020 combines two Intel Xeon controllers, 128 GB of memory, and 30 SAS bays with hybrid storage available as an option. Thin provisioning, data progress, federation, snapshots, compression/dedupe, and encryption are all supported by its SCOS software. Extremely scalable SAN with high-end performance and intelligent storage optimization. Offers dynamic performance, maximum capacity, and enterprise resiliency via automated tiering, data services, and encryption—without negatively affecting management effort and cost optimization.
