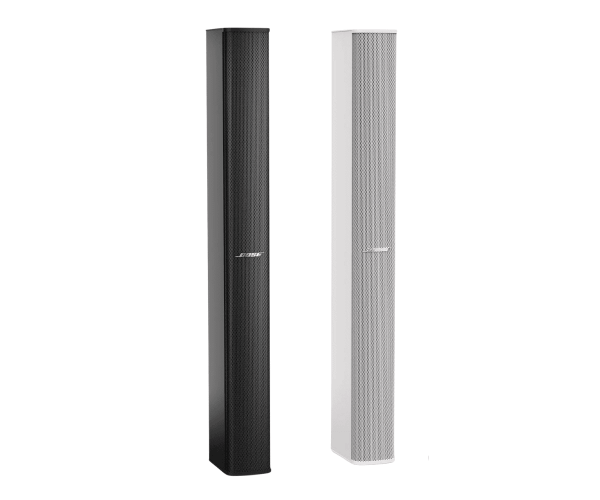

Bose MSA12X Powered Beam-Steering Column Array Loudspeaker

  • Product id:  24367
  • Stock: In Stock
  • Brand: Bose
  • Model: MSA12X
WhatsApp Inquiry

Key Features

    • Number of Channels: 12
    • Rated Power: 600 W
    • Frequency Range: 58 Hz – 18 kHz
    • Horizontal Coverage: 160°
    • Vertical Coverage: ±30° (1 module), ±40° (2–3 modules)

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Crystal Vision Solutions not responsible for any results obtained from using this information.

Main Features
Connector Type Euroblock + RJ‑45 (Dante)
Coverage Angle 160° horizontal; vertical adjustable via DSP
Speaker Type Powered beam‑steering column array
Connectivity Dante network + analog line input
Channels 12 internal channels (one module)
Physical Specification
Dimensions 984 × 106 × 206 mm
Color Black / White (paintable)
Weight 14.5 kg
Mounting Option Integrated wall/column brackets
Additional Features
Impedance Built‑in amplifier (active; nominal input impedance ~20 kΩ)
Sensitivity 112 dB max SPL @ 1 m (peak)
Power Source
Power Handling 600 W total (12 × 50 W)
Power Supply Built‑in (100–240 V AC)
Frequency Range 58 Hz – 18 kHz (‑10 dB)
Audio & Communication
Audio Outputs Integrated powered columns (active)

Bose MSA12X Powered Beam-Steering Column Array Speaker – Intelligent Sound Control for Professional Spaces

The Bose MSA12X Powered Beam-Steering Column Array Loudspeaker is a next-generation professional audio solution engineered for maximum speech intelligibility, precise coverage, and architectural integration. Designed by Bose, this advanced column array uses electronically steerable vertical sound beams to deliver uniform, echo-free audio across complex environments—without the need for external amplifiers or DSP.


With 12 individually amplified transducers, integrated DSP, and dual-beam capability, the MSA12X ensures that every listener—from the front row to balconies—hears clear, natural sound with consistent volume and tonal balance.

Bose MSA12X Powered Beam-Steering Column Loudspeaker in Bangladesh

The Bose MSA12X Column Array Loudspeaker in Bangladesh is available through authorized Bose Professional distributors and system integrators such as Crystal Vision Solutions. It is widely selected for houses of worship, auditoriums, corporate halls, educational institutions, museums, and transport hubs, where acoustic challenges like reverberation and uneven coverage are common. As a premium beam-steering solution, pricing in BD varies depending on project design, quantity, mounting requirements, and system configuration. For accurate availability and quotations, buyers should consult an authorized Bose partner in Bangladesh.

Why Choose the Bose MSA12X Beam-Steering Column Speaker?

Precision Audio Coverage

Electronically steered vertical beams focus sound exactly where needed—minimizing reflections from ceilings and walls.

Dual-Beam Technology

Simultaneously cover the main seating areas and balconies, or multiple listening zones, without additional speakers.

Self-Powered with Built-In DSP

Integrated 600W amplification and DSP eliminate the need for external amplifiers or processors.

Network-Ready Integration

Native Dante® audio networking and ControlSpace Designer compatibility simplify control, monitoring, and system expansion.

Modular & Scalable

Stack up to three MSA12X units to extend vertical coverage and enhance low-frequency performance.

Real-World User & Installer Experience

Audio professionals consistently highlight the exceptional clarity and even sound distribution of the Bose MSA12X. Installers appreciate the software-based beam configuration, which removes the guesswork of physical aiming. Engineers value the seamless Dante and ControlSpace integration, while audiences experience consistent, intelligible sound from front to back, even in highly reverberant spaces.

Ideal Applications for Bose MSA12X Column Array

  • Houses of worship (churches, mosques, temples)
  • Auditoriums and lecture halls
  • Conference rooms and training centers
  • Museums and galleries
  • Transportation hubs and terminals
  • Assembly halls and multipurpose venues

Bose MSA12X – Technical Highlights

  • Transducers: 12 × 2.25-inch, individually amplified
  • Amplification: Integrated 600 W Class-D with DSP
  • Beam Control: Electronically steerable vertical beams
  • Coverage: 160° horizontal; programmable vertical beam angles
  • Dual-Beam: Yes (simultaneous multi-zone coverage)
  • Networking: Dante® audio + ControlSpace integration
  • Stacking: Up to 3 units per array
  • Construction: Powder-coated aluminum column, steel end caps
  • Finish: Black or white (paintable)

Why Buy the Bose MSA12X from Crystal Vision Solutions?

Crystal Vision Solutions is a trusted provider of Bose Professional Audio Solutions in Bangladesh, offering:

  • 100% genuine Bose products
  • Competitive, project-based pricing
  • Professional system design & acoustic consultation
  • Fast nationwide delivery
  • Reliable after-sales technical support

With Crystal Vision Solutions, you don’t just buy a speaker—you invest in expert guidance, authentic equipment, and long-term performance assurance.
