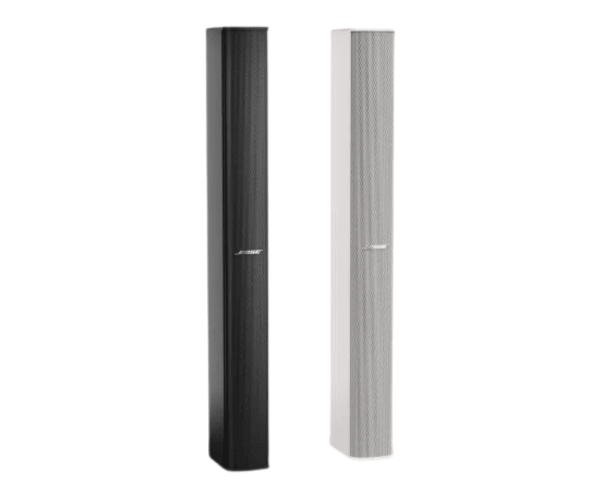

Bose MA12EX Modular Column Array Loudspeaker

  • Product id:  24369
  • Stock: In Stock
  • Brand: Bose
  • Model: MA12EX
WhatsApp Inquiry

Key Features

    • Frequency Range: 58 Hz – 16,000 Hz
    • Horizontal Coverage: 160°
    • Vertical Coverage: 20° per module
    • Power Handling: 150 W continuous, 600 W peak
    • Driver Configuration: 12 × 2.25-inch high-excursion, weather-resistant drivers

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Crystal Vision Solutions not responsible for any results obtained from using this information.

Main Features
Connector Type NL4 + barrier strip
Coverage Angle 160° horizontal × 20° vertical
Speaker Type Modular column array loudspeake
Connectivity Wired passive
Channels Mono (single passive unit)
Physical Specification
Dimensions 985 × 104 × 139 mm
Color Black / White
Weight 9.4 kg
Mounting Option M6 threaded inserts (mounting)
Additional Features
Impedance 8 Ω
Sensitivity 87 dB (1 W/1 m)
Power Source
Power Handling 150 W continuous / 600 W peak
Power Supply Passive (no built‑in amp)
Frequency Range 58 Hz – 16 kHz
Audio & Communication
Audio Outputs Passive line array output

About This Bose MA12EX Modular Column Array Speaker

The Bose MA12EX Modular Column Array Loudspeaker is a professional-grade sound reinforcement solution engineered for exceptional speech intelligibility, controlled coverage, and outdoor reliability. Designed for acoustically challenging spaces, this slim column array delivers 160° horizontal dispersion with carefully controlled vertical coverage, ensuring consistent sound quality across wide audience areas.

Equipped with twelve 2.25-inch high-excursion, weather-resistant drivers, the MA12EX performs reliably in both indoor and outdoor environments. Its modular architecture allows multiple units to be stacked vertically, extending throw distance, improving coverage, and minimizing unwanted floor and ceiling reflections. With its discreet, architectural design, the MA12EX blends seamlessly into modern spaces without sacrificing performance.

Bose MA12EX Modular Column Array Loudspeaker in Bangladesh

The Bose MA12EX is available in Bangladesh through authorized Bose Professional distributors and trusted AV solution providers such as Crystal Vision Solutions. It is widely selected for conference halls, houses of worship, public venues, and outdoor installations where clarity and reliability are critical. Pricing in Bangladesh may vary based on quantity, system design, and accessories (such as transformers or subwoofers). For accurate availability and project-based pricing, buyers are encouraged to consult authorized Bose dealers or professional integrators.

Why Choose the Bose MA12EX Modular Column Array Speaker?

  • Wide Horizontal Coverage: 160° dispersion ensures even sound across large seating areas
  • Modular Scalability: Stack single, double, or triple units to control vertical coverage and extend throw
  • Outdoor-Ready Design: IPX5-rated, weather-resistant construction for dependable outdoor use
  • Full-Range Performance: Handles speech and light music without needing separate bass speakers
  • System Expandability: Seamlessly integrates with Bose MB-series subwoofers for enhanced low frequencies

User Experience with the Bose MA12EX Column Loudspeaker

Installers and system designers appreciate the lightweight, modular construction, which simplifies transport, mounting, and alignment. Audio professionals report clear, natural vocal reproduction with excellent consistency across the listening area, even in reverberant spaces. End users benefit from uniform tonal balance and reduced echo, while venue owners value the speaker’s low-visibility design and long-term durability—especially in semi-outdoor and fully outdoor environments.

Where Can the Bose MA12EX Be Used?

  • Houses of worship
  • Auditoriums and lecture halls
  • Multi-purpose event spaces
  • Restaurants, cafés, and bars
  • Gymnasiums and sports halls
  • Transportation hubs and stations
  • Shopping malls, atriums, and public areas

Technical Highlights of the Bose MA12EX Modular Column Speaker

  • Driver Configuration: 12 × 2.25″ full-range, weather-resistant drivers
  • Coverage: 160° horizontal; ~20° vertical per module (adjustable via stacking)
  • Technology: Articulated Array® for precise vertical pattern control
  • Frequency Response: 58 Hz – 16 kHz
  • Power Handling: 150 W long-term, 600 W peak
  • Maximum SPL: 112 dB continuous / 118 dB peak
  • Construction: Powder-coated extruded aluminum enclosure with steel end caps
  • Weather Rating: IPX5 (suitable for outdoor installations)
  • Transformer Support: Optional CVT-MA12EX 70V / 100V transformers

Why Buy the Bose MA12EX from Crystal Vision Solutions?

Crystal Vision Solutions is a trusted name in Bose Professional Audio Solutions in Bangladesh, offering:

  • 100% genuine Bose products
  • Competitive, project-based pricing
  • Expert system design and consultation
  • Fast nationwide delivery
  • Reliable after-sales and technical support

With Crystal Vision Solutions, you’re not just purchasing a speaker—you’re investing in authentic equipment, professional guidance, and long-term audio performance.
