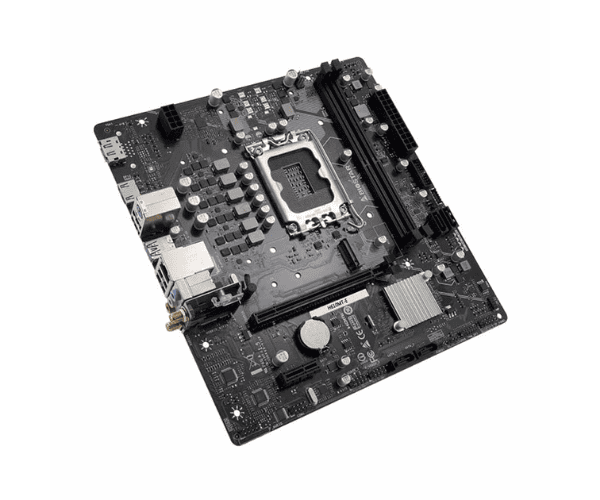

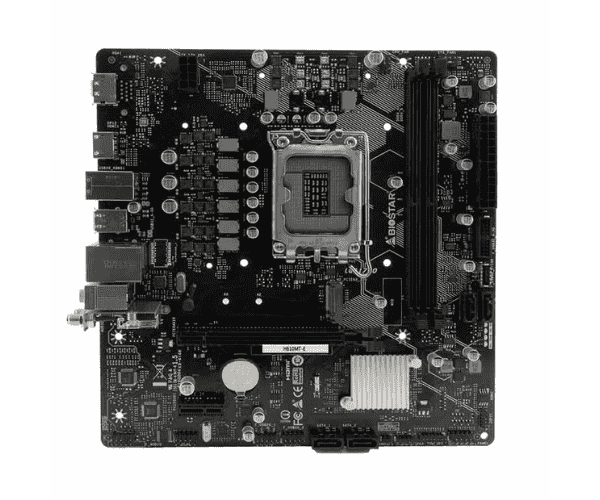

About the Biostar H610MT-E DDR4 LGA1700 Motherboard
The
Biostar H610MT-E DDR4 LGA1700 Motherboard is a dependable and economical solution for building Intel-based systems. It has an LGA1700 socket, supporting processors from Intel's 12th/13th generation. This motherboard is made for everyday computing and light gaming, with the essential spec highlights being PCIe 4.0 and DDR4 memory support, all at an affordable cost for budget users.
Specification
| Specification |
Details |
| Brand |
Biostar |
| Model |
H610MT-E |
| Chipset |
Intel H610 |
| Socket Supported |
LGA1700 |
| Supported CPU |
Intel 12th/13th Gen Core i9/i7/i5/i3, Intel Pentium, Intel Celeron processors |
| Memory Slots |
2x DDR4 slots |
| Max Memory |
64GB DDR4 (up to 3200 MHz) |
| Expansion Slots |
1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| M.2 Slots |
1x M.2 PCIe 4.0 x4, 1x M.2 SATA |
| Audio |
Realtek ALC897 7.1-Channel HD Audio |
| LAN |
Realtek RTL8111H 1G LAN |
| USB Ports |
2x USB 3.2 Gen 1, 2x USB 2.0 |
| Graphics Output |
1x HDMI, 1x VGA |
| Storage Support |
1x M.2 PCIe 4.0 x4, 1x M.2 SATA, 4x SATA 6G |
| RAID Support |
RAID 0, RAID 1 |
| Internal I/O Ports |
USB, fan, front panel connectors, RGB headers |
Description
Biostar H610MT-E DDR4 LGA1700 Motherboard in Bangladesh
The
Biostar H610MT-E DDR4 LGA1700 Motherboard: This is now available in Bangladesh. It does pretty well in constructing a practical, working Intel-powered computer for the cheapest cost. Power-packed to take casual routine works, lighter gaming, and home-office needs, this reasonably priced motherboard does not cost that much. These reasons are the basis upon which this product would give awesome value for money spent within the Bangladeshi context.
User Experience of Biostar H610MT-E DDR4 LGA1700 Motherboard
The
Biostar H610MT-E DDR4 LGA1700 Motherboard has kept many end-users delighted concerning stability and friendliness with respect to economic concerns. The board provides effortless installation, very smooth, and yields quite satisfying results for office work, multimedia, and casual gaming. Powered by Intel's newest processors, this board uses PCIe 4.0 and DDR4 memory to maintain constant speeds, even through multitasking and productivity tasks. Some owners also appreciated the ease of use, citing an intuitive BIOS that made most changes and settings pretty easily done.
Why Buy the Biostar H610MT-E DDR4 LGA1700 Motherboard?
You will get stability and high performance with a
Biostar H610MT-E DDR4 LGA1700 Motherboard. This would then provide complete compatibility with the 12th and 13th generation of Intel processors, suitable for building entry and even mid-level computers. Main features included PCIe 4.0 slots for an uplift in class in graphics cards; much quicker storage was inducted by taking full advantage of the M.2. The new motherboard design will be in the micro ATX form factor, compact, and thus compatible with most cases; it's also budget-priced, hence a great option for budget-conscious users. The Biostar H610MT-E DDR4 LGA1700 Motherboard is the best option for users who will ensure reliable performance, a smooth user experience, and solid upgrade options at a low price.
Key Features
- Intel 12th/13th Generation CPU Support: Supports Intel Core i9, i7, i5, i3, Pentium, and Celeron, thus allowing a wide range of system configurations.
- DDR4 memory support of up to 64GB, hence enabling seamless and fast multitasking at up to 3200 MHz speeds.
- PCIe 4.0 x16 Slot: Assures modern GPU support with high performance for gaming and graphics-intensive tasks.
- M.2 PCIe 4.0 x4 Support: The motherboard comes with one ultra-fast M.2 PCIe 4.0 x4 interface for lightning-fast SSD storage, reducing boot-up time and elevating data transfer speeds.
- Dual USB: Besides one, it's USB 3.2 Gen 1 and USB 2.0 for better connectivity and wider device compatibility.
- Realtek Audio and LAN: Premium-quality 7.1-channel audio and steady 1G Ethernet networking for perfect media consumption and other online tasks.
- Compact and Affordable: Perfect to build lower-cost systems that don't scrimp too heavily on performance.
Biostar H610MT-E DDR4 LGA1700 Motherboard Installation Steps
- Align and install the I/O shield on the back of your case, ensuring it fits securely.
- The CPU: Put your Intel processor, 12th/13th Generation, into an LGA 1700 socket, aligned and in place.
- Install RAM: Place the DDR4 memory sticks into two DIMM slots provided and push them until they click.
- Install Storage: Mount your M.2 SSDs to the M.2 PCIe 4.0 x4 or M.2 SATA slots, while screw the SATA drives into free ports.
- Installation of a Graphics Card: The graphics card needs to be seated via the PCIe 4.0 x16 slot and screwed tight.
- Power Connections: First, connect the 24-pin power connector and the 8-pin CPU power connector coming from your PSU to the motherboard.
- Connect Peripherals: Hook up front panel connectors, fans, and other peripherals like USB devices or RGB lightings.
- Power On and BIOS Setup: Turn on the power supply, enter BIOS settings, and configure to your liking for optimal performance.
Why Buy From Crystal Vision Solution?
Crystal Vision Solution offers the
Biostar H610MT-E DDR4 LGA1700 Motherboard at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier for your PC build.
What is the Price of the Biostar H610MT-E DDR4 LGA1700 Motherboard in Bangladesh?
The latest price of the
Biostar H610MT-E DDR4 LGA1700 Motherboard in Bangladesh depends on quantity.
Crystal Vision Solution ensures this motherboard has the best market price in Bangladesh. Our product is 100% original and lowest price in Bangladesh. All kinds of services are the best in Bangladesh, and contact us for any information and latest price.
