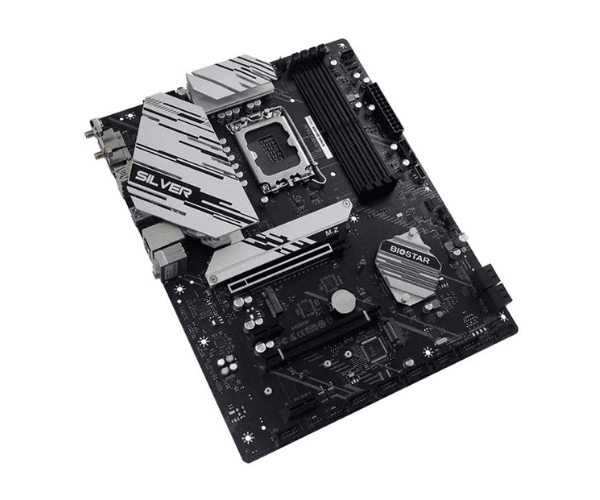

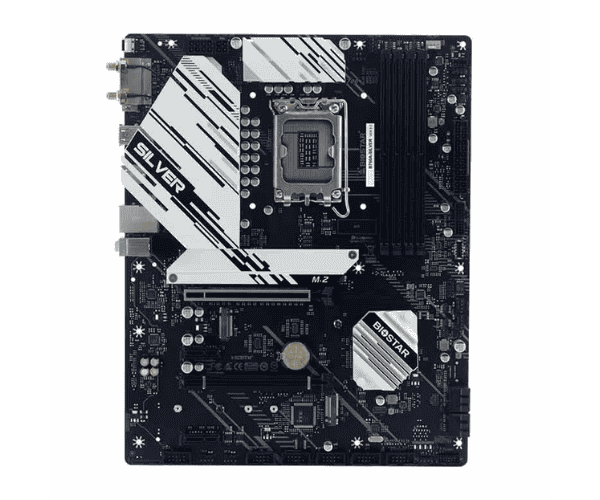

Preview of the Biostar B760A-SILVER DDR5 LGA1700 Gaming Motherboard
The
Biostar B760A-SILVER DDR5 LGA 1700 Gaming Motherboard has been intelligently designed for highly active users who want class-leading gaming and multitasking. It's a mainboard compatible with all 12th, 13th, and 14th Generation processors by Intel. Further, this gets 192 GB DDR5 memory for unrivaled speed and efficiency. To this end, it may be very close to ideal for a gamer or creative who has been looking in the direction of power without sacrifice on reliability.
Specification
| Specification |
Details |
| Brand |
Biostar |
| Model |
B760A-SILVER DDR5 |
| Chipset |
Intel B760 |
| Socket Supported |
LGA1700 |
| Supported CPU |
Intel 12th/13th/14th Gen Core i9/i7/i5/i3, Intel Pentium, Intel Celeron |
| Generation |
12th/13th/14th |
| Memory Slots |
4x DDR5 Slots |
| Max Memory |
192GB DDR5 (up to 6400+ MHz OC) |
| Expansion Slots |
1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| M.2 Slots |
1x PCIe 4.0 x4, 1x M.2 SATA |
| Audio |
Realtek ALC897 7.1-Channel HD Audio |
| LAN |
Realtek RTL8111H 1G LAN |
| USB Ports |
4x USB 3.2 Gen 1, 2x USB 2.0 |
| Graphics Output |
1x HDMI, 1x VGA |
| Storage Support |
1x M.2 PCIe 4.0 x4, 1x M.2 SATA, 4x SATA 6G |
| RAID Support |
RAID 0, RAID 1 |
| Internal I/O Ports |
USB, fan, front panel connectors, RGB headers |
Description
Biostar B760A-SILVER DDR5 LGA1700 Gaming Motherboard in Bangladesh
The
Biostar B760A-SILVER DDR5 LGA 1700 Gaming Motherboard for gaming professionals and workers promises a lot of improvements in performance and future proof on the motherboard. This will definitely be the best choice for powerful gaming and workstation building with modern processors, Intel processors, in combination with high-speed RAM in DDR5 format memory.
Hands-on Experience of the Biostar B760A-SILVER DDR5 LGA 1700 Gaming Motherboard
It's just that the target audience for the
Biostar B760A-SILVER DDR5 LGA1700 Gaming Motherboard puts more emphasis on stability and velocity under pressure. This means fluent, smooth play without hiccups for gamers and no slowing down for content creators because one can easily do several things at once. And that is why such a robust motherboard, supplemented by dependable options for connectivity, has gained appreciation from users in the community.
Why Choose Biostar B760A-SILVER DDR5 LGA1700 Gaming Motherboard?
The
Biostar B760A-SILVER DDR5 LGA1700 Gaming Motherboard literally just fits in perfectly for those eager to get maximum performance with the added advantage of future-proofing. Power everything you are working on, be it gaming, streaming, or creation-anything that throws demanding performance your way is ready with features like Intel 12th, 13th, and 14th Generation processors, DDR5 memory, and PCIe 4.0 support.
Key Features
- Intel 12th/13th/14th Generation CPU Support: Support an Intel Core i9, i7, i5, i3, Pentium, and Celeron processor to meet the demands of diverse applications with speed.
- Support DDR5 Memory: Support up to 192GB of DDR5 RAM running at a maximum of 6400+ MHz (OC) for unmatched memory performance.
- PCIe 4.0 x16 Slot: Faster transfer data speeds deliver ultra-performance and are perfect for modern GPUs and high-performance expansion cards.
- M.2 PCIe 4.0 x4 Slot: Supports NVMe SSD for high-speed options with ultra-fast boot and load times.
- Realtek ALC897 Audio: Features High-quality 7.1-channel capability, providing an excellent gaming and media experience.
- Realtek 1G LAN: Ensuring faster and stable connectivity of the internet for flawless gaming, seamless streaming, and great content creation.
- RAID Support: With RAID 0 and RAID 1 supported to make storage much quicker and guard against data losses.
How to Install Biostar B760A-SILVER DDR5 LGA1700 Gaming Motherboard
- Installation of I/O Shield: The motherboard I/O shield is taken to the back of the PC case and placed according to setup alignment.
- Installation of CPU: Place Intel 12th Generation, 13th Generation, and 14th Generation CPU into the socket called LGA 1700 and screw tight.
- Installing DDR5 Memory: Install DDR5 RAM modules in memory slots by pushing it until seated.
- Storage Installation: Install the M.2 SSDs onto the PCIe 4.0 x4 slot and connect all SATA devices.
- Install GPU: Screw down the graphics card on the PCIe 4.0 x16 slot tightly.
- Power Supply: Screw the 24-pin and 8-pin power connectors onto the motherboard.
- The next step will be the attachment of the front panel: Front Panel Connectors - Connect front panel USB, audio, and RGB connectors.
- Booting and Installation: Power on the computer, go into the BIOS setup, and change the settings available in it.
Why Buy From Crystal Vision Solution?
Crystal Vision Solution offers the
Biostar B760A-SILVER DDR5 LGA1700 Gaming Motherboard at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier for your PC build.
What is the Price of the Biostar B760A-SILVER DDR5 LGA1700 Gaming Motherboard in Bangladesh?
The latest price of the
Biostar B760A-SILVER DDR5 LGA1700 Gaming Motherboard in Bangladesh depends on quantity.
Crystal Vision Solution ensures this motherboard has the best market price in Bangladesh. Our product is 100% original and lowest price in Bangladesh. All kinds of services are the best in Bangladesh, and contact us for any information and latest price.
