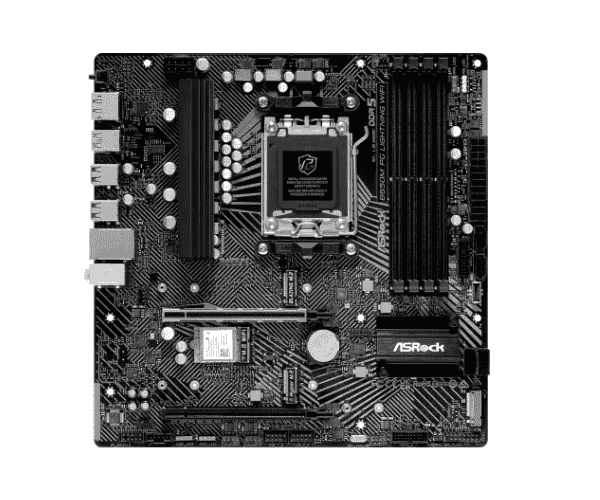

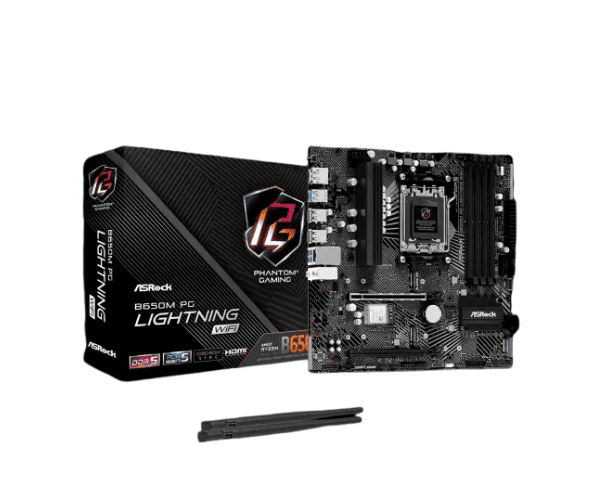

Overview of the ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard
The
ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard is designed for high-performance gaming. With state-of-the-art AMD Ryzen 7000 series processors, this motherboard features a bunch of exclusive features, including DDR5 memory, Wi-Fi 6, and PCIe 5.0, hence class-leading gaming and productivity are assured. Strong in build, it ensures seamless performance while future-proofing your system.
Specification
| Feature |
Details |
| Brand |
ASRock |
| Model |
B650M PG Lightning WiFi |
| Socket |
AM5 |
| Supported CPU |
Ryzen 9000, 8000, and 7000 Series Processors |
| Chipset |
AMD B650 |
| Form Factor |
Micro ATX |
| Memory Type |
4x DDR5 (up to 6400 MHz overclocked) |
| Maximum Memory Capacity |
128GB |
| Graphics Output |
1 x HDMI, 1 x DisplayPort |
| Expansion Slots |
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x1 |
| Storage Interface |
1 x M.2, 6 x SATA3 |
| USB Ports |
USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 1, USB 2.0 |
| Ethernet |
1 x 2.5 Gigabit LAN (10/100/1000/2500 Mb/s) |
| Audio |
7.1 CH HD Audio |
| Cooling |
Multiple fan headers, including CPU and chassis fan support |
| Overclocking |
Supported |
| Wi-Fi |
Wi-Fi 6 (802.11ax) |
| RGB |
Addressable RGB LED header |
Description
ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard in Bangladesh
The
ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard is available in Bangladesh, and all the online or physical tech retailers are capable of providing access to it. From Wi-Fi 6 to PCIe 5.0 and DDR5, this motherboard contains an array of features that offer great performance both related to gaming and work. It would, therefore, be a great option for those in Bangladesh trying to get an affordable high-performance motherboard.
Experience of Working with ASRock B650M PG Lightning WiFi AM5 Micro-ATX Motherboard
Setting up this particular motherboard was pretty quick. Working, working on it became really stable very quickly. Its wireless connectivity feature using WiFi 6E included with the motherboard results in fast connectivity suitable for gamers and content creators who demand smooth performance out of their gadget investments. Besides, 2.5Gb LAN provides an option of high-speed internet access, no lag in playing games, or stuttering in streams. Such a motherboard may become good in starting the rigs not only for gamers but also high-performance workstations. A minimalistic design with combined RGB lighting-the best thing any user looking for style will want.
Why choose the ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard?
The
ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard is fully featured, just perfect for users who want to build a future-proof system. Coming equipped with support for the latest AMD Ryzen 7000 series processors, DDR5 memory, and PCIe 5.0, you can rest assured your PC will run just about any task you could throw at it. Wi-Fi 6 further makes sure there's speed and stability in wireless internet, while 2.5Gb Ethernet provides an ultra-fast wired connection. It will provide you with all the features you want on a gaming PC, content creation workstation, or just a general high-performance PC.
Key Features
- AM5 Socket Compatibility: Out of the box, it supports Ryzen 9000, 8000, and 7000 Series processors for great performance.
- Wi-Fi 6 (802.11ax): Faster and more stable wireless networking, Wi-Fi 6 is present for streaming, gaming, and general usage.
- DDR5 Memory Support: Future-proof your system with DDR5 memory at speeds of up to 6400 MHz when overclocked and truly fast data.
- PCIe 5.0 Slot: Upgrade your game with the very latest in data transfer, thanks to a PCIe 5.0 x16 slot suited for high-end graphics cards.
- 2.5Gb Ethernet: For gamers and streamers alike, 2.5Gb Ethernet means your internet will be way faster and more reliable.
- More USB Ports: With USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 1, and USB 2.0 designed for blazing data transfer.
- RGB Support: Add color to your build with addressable RGB lighting that redefines customization.
- Smoother Cooling: Several fan headers reserved for keeping your system cool during those very overwhelming loads.
Steps to Install ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard
- Preparation of the anti-static environment, tools, and components to be installed includes a screwdriver and thermal paste.
- Installation of the CPU: Open up the AM5 socket, delicately install your Ryzen processor inside the socket, and lock it up after seating.
- Put a small amount of thermal paste on the CPU before installing the cooler for efficient heat transfer.
- Installation of Memory: The DIMM slots are fitted with DDR5 RAM sticks, ensuring those click and sit well.
- Installation of Motherboard: Put the ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard in your case and then screw it with screws.
- Installation of Power Supply shall be done to the motherboard with an installation of 24-pin ATX power connector and 8-pin CPU power cable.
- Installation of Storage: Install the M.2 SSD onto the M.2 slot and screw it in. Add additional SATA3 storage if required.
- Installation of Expansion Cards: Install any given GPU or other expansion cards into the respective PCIe slots.
- Connect Front Panel & Cooling: Connect the front panel connectors, USB cables, and case fans to the motherboard.
- Power Up & Test: Boot your system, enter BIOS just for checking settings, and ensure everything works.
Why Buy From Crystal Vision Solution?
Crystal Vision Solution offers the
ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier for your PC build.
What is the Price of the ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard in Bangladesh?
The latest price of
ASRock B650M PG Lightning WiFi AM5 Micro ATX Motherboard in Bangladesh depends on quantity.
Crystal Vision Solution ensures this motherboard has the best market price in Bangladesh. Our product is 100% original and lowest price in Bangladesh. All kinds of services are the best in Bangladesh, and contact us for any information and latest price.
