Description of Westermo ODW-720-F1
Product Overview

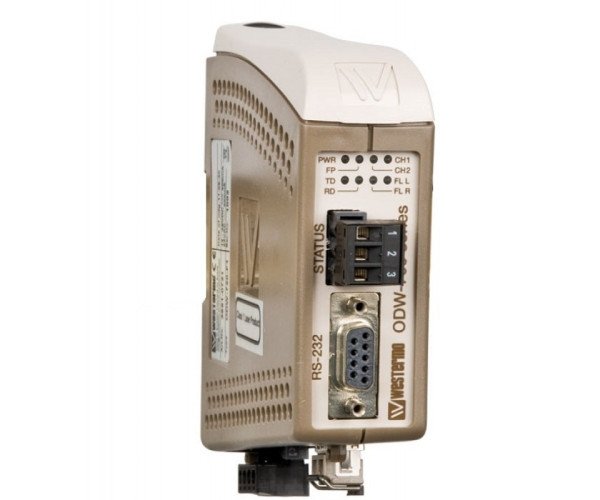

The ODW-720-F1 serves as a robust solution for transmitting RS-232 protocols point-to-point over fiber-optic links. Its versatile design accommodates a range of Westermo-verified SFP (Small Form Pluggable) transceivers, offering solutions tailored to specific needs, such as single-fiber configurations or distances spanning up to 120 km. Crafted for industrial applications demanding longevity and reliability in harsh environments, the ODW-720-F1 leverages top-quality components to ensure dependable operation over an extended service life. Drawing from Westermo's extensive experience in serial protocols, this unit is capable of transmitting even RTS/CTS hardware controls if required. Installation of the ODW-720-F1 is straightforward thanks to its compact size and integral DIN rail clip, facilitating hassle-free deployment. Additionally, the unit operates transparently across any data rate, eliminating the need for configuration. Its comprehensive LED indicators offer a quick and easy means of detecting and troubleshooting any network issues that may arise, further enhancing operational efficiency and reliability.
Product Specification Table
| Data transfer speed |
0.3Kbps to 250Kbps |
| Maximum data transmission distance |
120Km |
| Minimum output power converter |
-20dBm |
| Sensitivity to receiving information |
-35dBm, -34dBm, -31dBm |
| Wavelength |
1550nm, 1310nm |
| Power Requirements |
| Maximum power consumption |
30W |
| Power Consumption (Output Adapter) |
24V DC, 1.3A |
| Power Input Plugin ( Redundant ) |
|
| Standards and protocols |
| Point-to-point topology |
- |
| Ring topology |
- |
| RS-232 Signals |
- |
| RS-422 Signals |
- |
| RS-485-2w Signals |
- |
| Interface |
| 10/100MB RJ45 (Megabit) Ports |
|
| 100-mb Fiber optic single-mode (Megabit) Ports |
|
| 10/100/1000 MB (Gigabit) POE Ports |
|
| 100-mb Fiber optic multi-mode (Megabit) Ports |
|
| 10/100/1000MB RJ45 (Gigabit) Ports |
|
| 1000 MB SFP Fiber-Optic (Gigabit) Ports |
: 1 LC Duplex or LC Simplex port |
| 100-Mb SFP Fiber-Optic (Megabit) Ports |
: 1 LC Duplex or LC Simplex port |
| Number of 10/100 MB PoE port |
|
| USB |
|
| DSL |
|
| Serial port |
: RS-232 terminal |
| Other ports |
|
| General |
| Fan / Fanless |
|
| MTBF |
500,000 hour |
| Required cable diameter |
- |
| Physical Characteristics |
| Dimensions |
35x121x119mm |
| Housing |
- |
| Installation |
Din-rail |
| Isolation |
: RS-232 port and Terminal Status |
| Operating Temperature |
-40 to 70 ° C |
| Operation Humidity |
- |
| Protection against excessive consumption |
|
| Protection against reverse flow |
|
| Standards and Certifications |
EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 55022, EN 55024, FCC part 15 Class A, EN 50121-4, IEC 62236-4, EN 60950-1, IT equipment, EN 60079-0, EN 60079-15, EN 61000-4-2, IEC 61000-4-3, ENV 50204, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-9, EN 61000-4-11 and EN 61000-4-16 |
| Storage Temperature |
-40 to 70 ° C |
| Weight |
0.26Kg |
| LED Indicators |
| LED Per Port |
|
| Power |
|
