Uniqscan UV300-M2 Area scan Under Vehicle Surveillance System
The
Uniqscan UV300-M2 Area Scan Under Vehicle Surveillance System combines state-of-the-art terminal data acquisition, mobile communication, and Internet technology to deliver an effective and reliable vehicle monitoring solution. Designed for high-volume environments like transportation hubs, government buildings, and border control points, this system helps ensure accurate vehicle inspection, positioning, and tracking while significantly improving safety, accuracy, and efficiency in the vehicle inspection process.
This fixed under-vehicle scanner offers simultaneous area and line scanning technologies, providing real-time high-resolution images of vehicle undercarriages. Its advanced detection algorithms and AI integration make it capable of identifying contraband, potential threats, and foreign objects, ensuring security in critical environments.

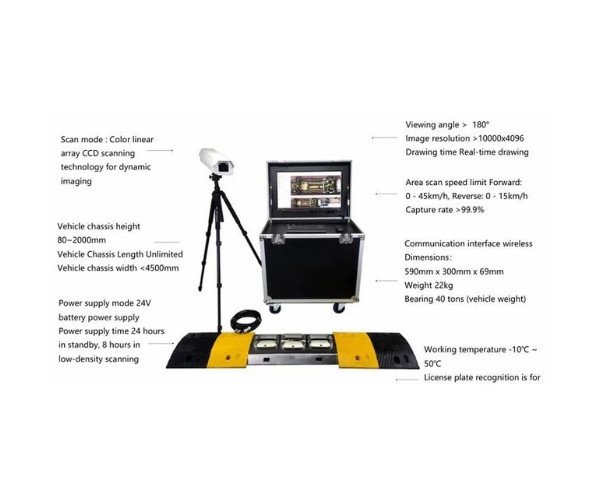

Uniqscan UV300-M2 Area scan Under Vehicle Surveillance System Specifications
| Parameter |
Detail |
| Scan Mode |
Color linear array CCD scanning technology |
| Vehicle Chassis Height |
80~2000mm |
| Vehicle Chassis Length |
Unlimited |
| Vehicle Chassis Width |
<4500mm |
| Power Supply Mode |
24V battery power supply |
| Power Supply Time |
24 hours standby, 8 hours low-density scanning |
| Viewing Angle |
180° |
| Image Resolution |
>10000x4096 |
| Drawing Time |
Real-time |
| Scan Speed (Forward) |
1-45 km/h |
| Scan Speed (Reverse) |
1-25 km/h |
| Capture Rate |
99.9% |
| Communication Interface |
Wireless |
| Dimensions |
590mm x 300mm x 69mm |
| Weight |
22kg |
| Bearing Capacity |
40 tons (vehicle weight) |
| Operating Temperature |
-10°C to 50°C |
Features and Benefits
- Advanced Scanning Technology: Supports both area and line scan imaging, allowing for enhanced vehicle inspection.
- Real-time Monitoring: Automatically detects vehicle direction and captures 4K color images, enhancing the speed and precision of the inspection process.
- Comprehensive Vehicle Inspection: With optional AI functionalities like foreign object detection (FOD), license plate recognition, and driver blacklists, the UV300-M2 offers a robust, scalable solution for vehicle surveillance.
- User-friendly Software: Includes Uni-Vision for portable use and Pro-Vision server-client architecture for managing multiple scanners and clients.
- Enhanced Connectivity: Supports wireless communication for easy system integration and remote management, reducing installation costs and improving operational flexibility.
Applications
- Airports & Transportation Hubs: Ensures rapid and reliable vehicle inspections in high-traffic areas.
- Government & Military Facilities: Secures entry points by providing high-resolution vehicle undercarriage images and real-time monitoring.
- Industrial & Commercial Security: Enhances overall security by providing advanced foreign object detection and AI-driven inspection tools.
Price of Uniqscan UV300-M2 Area scan Under Vehicle Surveillance System in Bangladesh (BD)
Buy the
Uniqscan Under Vehicle Surveillance System for its advanced threat detection, high-resolution imaging, and reliable security performance. Ideal for checkpoints, parking lots, and high-security areas, this system ensures thorough vehicle inspections with ease. When you purchase from
Crystal Vision Solutions, you receive authentic Uniqscan products, competitive pricing, and excellent customer service. With fast delivery and expert support, Crystal Vision Solutions guarantees a smooth buying experience for all your surveillance needs.
