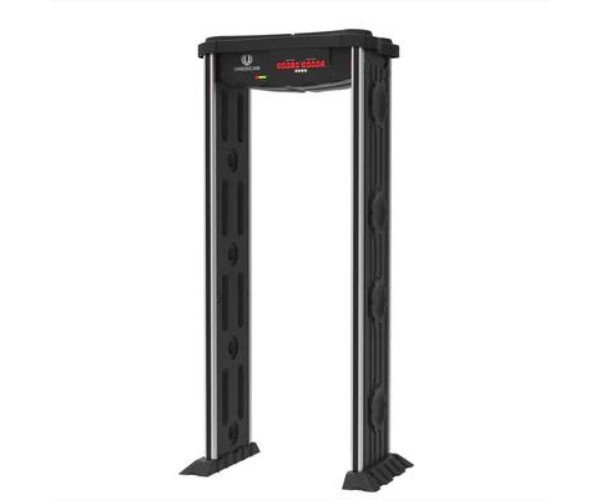

Uniqscan UM500 Walk Through Metal Detector

  • Product id:  9079
  • Stock: In Stock
  • Brand: UNIQSCAN
  • Model: UM500
WhatsApp Inquiry

Key Features

    • Detection Zones: 18zone
    • Multi-Unit Synchronization: Manual
    • Visual Displays: Digital tube display
    • Access Control: Button
    • Control Outputs: Alarm area indicator and buzzer
    • Sensitivity: Each zone 0-99, 100 levels adjustable
    • Frequency: 4K-8KHz continuously adjustable

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Crystal Vision Solutions not responsible for any results obtained from using this information.

Main Features
Alarm System Sound + LED
Capacity Sound + LED
Weatherproof Rating IP65
Material ABS (for whole body)
Power Consumption ≤ 10 W
Physical Specification
Dimensions 2200 mm (H) × 800 mm (W) × 580 mm (D)
Weight Net: ~70.5 kg, Gross: ~82 kg
Performance
Frequency Net: ~70.5 kg, Gross: ~82 kg
Power Source
Power Supply AC 85 V – 264 V
Current 1A
Temperature
Operating Temperature –20 °C to +50 °C
The Uniqscan UM500 Walk Through Metal Detector is a specialized security solution designed for outdoor use. With its durable ABS construction and high-level protection, including an IP65 rating, Uniqscan UM500 is perfectly suited for large outdoor venues like festivals, stadiums, or other public events. This metal detector ensures seamless operation, even in harsh weather conditions. Due to its rain-proof design and touch button operation, the detector can remain functional even when wet. The UM500 features 18 detection zones, each with adjustable sensitivity levels, providing accurate detection of concealed metal objects. The dual-sided LED indicators and audible alarms make it easy for security personnel to pinpoint the location of metal objects on individuals passing through. It offers secure access with multi-level password protection, ensuring only authorized personnel can adjust settings or manage security operations. Built with strong aluminum protection, the UM500 is sturdy, and its modular design allows for easy maintenance and part replacement. Whether used at outdoor concerts, events, or construction sites, the UM500 ensures the highest level of safety and efficiency in security screenings.

Key Features

  • 18 Detection Zones: Provides comprehensive detection coverage with 100 adjustable sensitivity levels per zone.
  • Durable ABS Construction: Designed for outdoor use, resistant to harsh environmental factors, including rain and wind.
  • Waterproof and Weather-Resistant: The IP65 rating ensures protection against rain, making it ideal for outdoor venues.
  • Touch Button Operation: Allows for operation even during rainwater immersion, without interference or malfunction.
  • Tamper Alarm: A security feature that sounds an alarm if unauthorized personnel attempt to adjust settings without entering the correct access code.
  • Sound and LED Alerts: Dual-sided LED indicators and a buzzer alarm make it easy to track and respond to detections.
  • Real-Time Signal Interference Detection: Continuously displays environmental signal interference to ensure smooth operation.


Benefits

  • Outdoor Durability: Built with ABS material and equipped with weather-resistant features, the UM500 is designed for rugged outdoor environments.
  • Easy Maintenance: The modular design allows for quick and easy maintenance, ensuring maximum uptime during security screenings.
  • Accurate Detection: The 18 detection zones with adjustable sensitivity provide precise detection, allowing for identification of even small metal objects.
  • Enhanced Security: Password protection ensures only authorized personnel can make changes to the system settings, maintaining high security standards
