| Feature |
Specification |
| Type |
Moving coil microphone |
| Directivity |
Cardioid |
| Rated impedance |
600 ohms, balanced |
| Rated sensitivity |
-52 dB (1kHz, 0dB = 1 V/Pa) |
| Frequency response |
50Hz to 15kHz |
| Connection cable |
Separate type |
| Cable length |
5 m |
| Connector |
XLR-3 type |
| Talk switch |
Short-off, slide switch |
| Finish |
Body: Die-cast aluminum, black. Head: Die-cast aluminum/zinc-plated steel wire, black. |
| Dimensions |
Φ47 × 175 mm (microphone body) |
| Weight |
300 g (without connection cable) |
| Accessories |
Microphone holder (W 5/16″ 18 thread) |

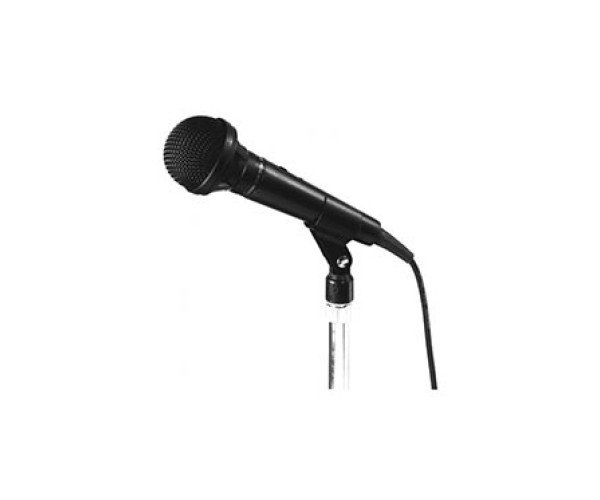

The TOA DM-270 is a renowned dynamic microphone recognized for its exceptional clarity and suitability for vocal applications. It operates on the moving coil principle, utilizing a wire coil to convert acoustic signals into electrical signals. This dynamic microphone type is particularly favored for vocal use due to its reduced susceptibility to feedback and ambient noise, distinguishing it from condenser microphones. Featuring a cardioid pickup pattern, the DM-270 is primarily responsive to sound waves emanating from its front direction. This characteristic renders it highly suitable for scenarios where the emphasis is placed on capturing the intended sound source while minimizing the impact of surrounding individuals or background noise.
