The

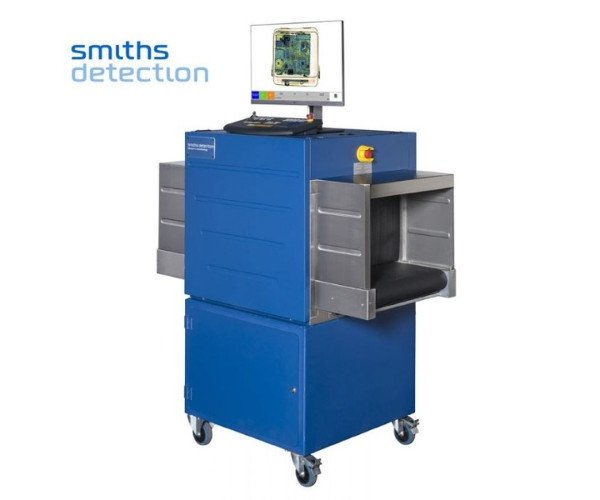

Smiths Detection HI-SCAN 5030C is a reliable and compact X-ray baggage scanner, designed for small to medium-sized objects. With its advanced HI-MAT Plus technology, it delivers high-quality images for superior material discrimination. Therefore, making it ideal for use in high-security environments such as airports, courthouses, embassies, and office buildings.
The conveyor system operates at 0.18 to 0.22 m/s, with a maximum load capacity of 60 kg on an evenly distributed belt. Thus, ensuring fast and efficient baggage processing. The 38 AWG wire resolution guarantees the detection of even the smallest threats, while the 14 mm steel penetration capability ensures thorough scans of dense objects. The scanner also comes equipped with an L-shaped detector line and a flat panel LCD monitor for clear, real-time image analysis, thus allowing operators to easily identify threats.
With its user-friendly interface, operators can benefit from advanced features like automatic return mode, real-time diagnostics, and the ability to store up to 20,000 images. The HI-SCAN 5030C also supports USB 3.0 and IMS interfaces for enhanced connectivity and faster processing.
This X-ray scanner is highly versatile, compact, and built for performance in even the most challenging environments. Its CE-labelling, compliance with EU regulations, and IP20 protection class make it a dependable solution for businesses and organizations seeking top-tier security.
Smiths Detection Hi-scan 5030c X-ray scanner Specifications
| Specification |
Details |
| Tunnel Dimensions |
532 mm x 328 mm (20.9” x 12.9”) |
| Conveyor Speed |
0.18 – 0.22 m/s |
| Max Conveyor Load |
60 kg (evenly distributed) |
| Resolution |
Typical: 38 AWG |
| Penetration |
14 mm typical, 16 mm max (steel) |
| Image Processing |
Black/White, Color, Edge enhancement |
| Monitor |
19” Flat Panel LCD, 1920 x 1200 resolution |
| Operating Temperature |
0°C to 40°C |
| Power Consumption |
0.4 kVA |
| Weight |
188 kg |
Key Features:
- HI-MAT Plus Color Imaging for improved material discrimination
- 38 AWG wire resolution for detecting small objects
- Supports USB 3.0 and IMS interface for faster data processing
- Capable of storing up to 20,000 images
- Real-time self-diagnostic system
- 60 kg conveyor load capacity for efficient scanning of medium-sized objects
- Flat panel LCD monitor for high-resolution images and real-time analysis.
Price of Smiths Detection Hi-scan 5030c X-ray scanner in Bangladesh (BD)
The
X-Ray Baggage Scanner ensures thorough and efficient security screening. Therefore, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from
Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, thus ensuring you find the best security solution for your needs.
