The

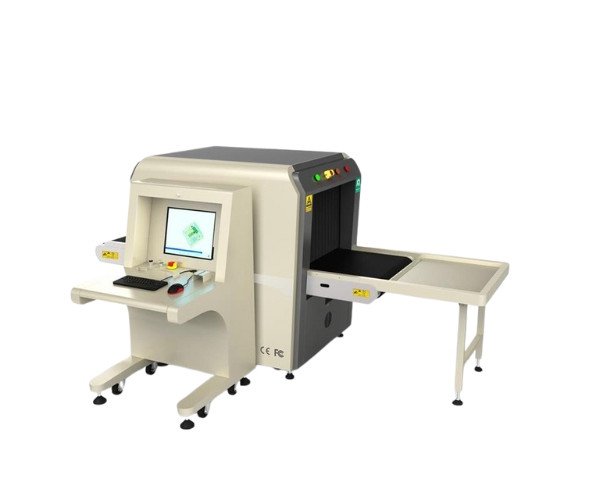

SecuScan ZC6550 X-Ray Baggage Scanner is an advanced, dual-energy security solution by Safeway Systems, designed for critical inspection in high-security and industrial environments. Built with cutting-edge technology, the ZC6550 provides precise and efficient scanning with a 650mm by 500mm tunnel. Therefore, making it suitable for a variety of applications, including logistics centers, airports, industrial facilities, and governmental security checkpoints. With a Linux-based system and a high-resolution 21.5-inch monitor, this X-ray scanner offers exceptional imaging quality, simplified operation, and easy maintenance.
Featuring a state-of-the-art image system, the ZC6550 offers versatile imaging options, including color, black and white, pseudo-color, and high- and low-penetration settings for improved image clarity. The L-shaped photodiode array sensor, with multi-energy detection, ensures clear distinction between organic and inorganic materials. Thus, enhancing the scanner’s ability to detect contraband, explosives, and other threats. Additionally, the SecuScan ZC6550 provides an intuitive threat image projection feature, automatically displaying realistic images of threats to improve vigilance and train operators.
SecuScan ZC6550 Industrial X Ray Machine Specifications
| Feature |
Specification |
| Tunnel Size |
650 mm (L) x 500 mm (W) |
| Conveyor Speed |
0.22 m/s |
| Conveyor Height |
695 mm |
| Max Conveyor Load |
200 kg |
| X-Ray Dose per Inspection |
1.4 μGy |
| X-Ray Leakage |
<0.6 μGy/h |
| Steel Penetration |
30 mm |
| Wire Resolution |
0.102 mm (AWG38) |
| Penetration Resolution |
0.254 mm (AWG30) under three-step aluminum |
| Spatial Resolution |
Horizontal: 1.0 mm, Vertical: 1.0 mm |
Key Features
- Dual-Energy Linux System: Offers accurate material discrimination, ensuring the detection of both organic and inorganic threats.
- High-Resolution Imaging: Equipped with a 1024 x 1280 pixel display, featuring 4096 grayscale levels for superior clarity.
- Image Enhancement Functions: Includes color/BW, high/low penetration, organic/inorganic stripping, and pseudo color, enhancing operator efficiency.
- Threat Detection Alerts: Automatically highlights potential explosives and narcotics based on atomic signatures.
- Large Image Archive: Stores up to 100,000 images, supporting USB transfer and format conversion to JPG, BMP, and other formats.
- Network Capabilities: Supports remote access, centralized image storage, and network TIP for real-time monitoring and multi-station operations.
Applications
- Airports and Border Security: Efficient screening of luggage, packages, and shipments.
- Industrial Facilities: Identifies foreign materials in manufacturing and logistics operations.
- High-Security Facilities: Critical for security in government buildings, embassies, and correctional facilities.
- Logistics and Distribution Centers: Ensures safe transportation by identifying contraband and prohibited items.
Price of SecuScan ZC6550 Industrial X Ray Machine in Bangladesh (BD)
The
X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from
Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, thus ensuring you find the best security solution for your needs.
