| Feature |
Specification |
| LCD Monitor |
Widescreen 18.5″ LED TFT |
| Viewing Area |
18.5 inches |
| Optimum Resolution |
1920×1080 @ 60Hz |
| Display Color |
16.7 Million |
| Brightness |
350cd/m² (Typical) |
| Contrast Ratio |
1000:1 (Typical) |
| Pixel pitch(mm) |
0.213(H) × 0.213(W) |
| Mouse |
X/Y Resolution: >1000 points/inch (40 points/mm) |
| Trackball Function |
Supports |
| Keyboard |
99 Keys (82 Main Keys + 17 Independent Numeric) |
| Ethernet Interface |
10/100/1000Mbps RJ-45 Copper |
| Remote Control |
KVM Control (ActiveX Control) |
| Remote Management |
WEB browser-based |
| RS485 Serial Interface |
RJ-45 Copper |
| Security |
Supports DES, AES128, AES256 Encryption |
| Input Power |
100V – 240Vac, 50 ~ 60Hz, <1.5A |
| Power Consumption |
35W |
| Operating Temperature |
0 ~ 50 ℃ |
| Storage Temperature |
-20 ~ 60 ℃ |
| Humidity |
0~80% RH, Non-condensing |
| Net Weight |
13.4 kg |
| Product Dimension |
448mm × 560mm × 42.5mm |
| Package Dimension |
765mm × 615mm × 185mm |
| Optional Power Input |
-36V — -72Vdc |
SafeNet SN-KC7816S in Bangladesh

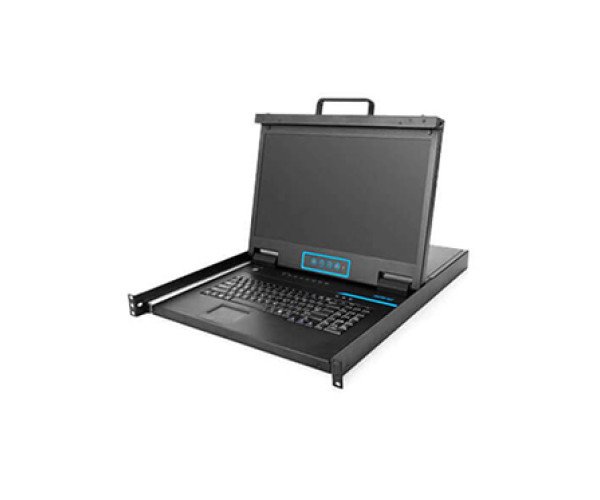

16-Port Full HD KVM Over IP Switch with Integrated 18.5" Monitor
Introducing the revolutionary TP KVM Solution, an innovative answer to the high-density enterprise server room and data center cable woes. By harnessing the power of easily manageable Twisted Pair Cables (Cat 5e, Cat6, Cat7), this cutting-edge system eliminates cumbersome KVM combo cables, significantly reducing cable clutter and saving valuable space. With an extended cabling distance of up to 100M and beyond and a crystal-clear Full HD resolution of 1920×1080 @60Hz, it effortlessly caters to longer distance requirements. The TP KVM Solution boasts an integrated 18.5" LED-backlit widescreen LCD Monitor, keyboard, and touchpad, all conveniently housed in a 1U Rack-Mountable design. Say goodbye to tangled cables and embrace the efficiency of two USBs and one VGA port for added connectivity. Experience remote management like never before, enabling both local and remote users to monitor and access connected servers over LAN & WAN. With its secure encryption support, control remains safeguarded. Embrace the future of cable management with TP KVM Solution - your gateway to enhanced efficiency and seamless control in the digital landscape. Say hello to optimized operations and reduced cable headaches today!
