| Specification |
Description |
| LCD Monitor |
18.5" Widescreen LED-backlit LCD |
| Display Resolution |
1920x1080@60Hz (Full HD) |
| Aspect Ratio |
16:9 |
| Console Type |
1U Rack-Mountable Housing |
| KVM Switch Ports |
16 (Integrated with the console) |
| Maximum Cascading |
Up to 256 servers (by cascading daisy-chain cable) |
| Connection Options |
USB and PS2-VGA |
| Additional VGA Port |
Yes (Allows connecting an external VGA monitor) |
| Keyboard |
Full-size 99 keys with integrated number pad |
| Mouse |
Integrated touchpad with trackball |
| Computer Switching |
Front Panel Pushbuttons, Keyboard Hotkey, OSD |
| Auto Scan Feature |
Yes (for monitoring user-selected computers) |
| Password Protection |
Two-level passwords with separate profiles |
| Compatibility |
Windows, Sun, Unix, Linux |
| Power Input |
100V - 240Vac, 50 ~ 60Hz, <1.5A |
| Power Consumption |
23W |
| Operating Temperature |
0 ~ 50 ℃ |
| Storage Temperature |
-20 ~ 60 ℃ |
| Humidity |
0~80% RH, Non-condensing |
| Net Weight |
11.4kg |
| Product Dimension |
448mm × 560mm × 42.5mm |
| Package Dimension |
765mm × 615mm × 185mm |
| Optional Power Input |
-36V — -72Vdc |
| Package Contents |
1 x LCD VGA KVM Switch, 1 x Power Cord, 2 x Mounting Rails, 8 x USB+VGA KVM Cable, 1 x Quick Start Guide |

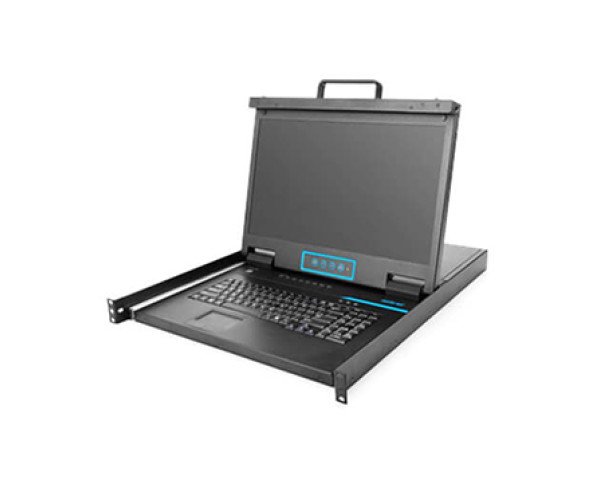

SafeNet SN-KC6808S KVM Switch
The SafeNet SN-KC6816S is a 16-port KVM switch that allows you to control up to 16 computers from a single console. It has a built-in 18.5-inch widescreen LCD monitor with a resolution of 1920x1080. This means that you can see all 16 computers on a single screen, making it easy to switch between them. You can switch between computers using front panel pushbuttons, keyboard hotkeys, or the OSD menu. The auto-scan feature automatically monitors selected computers, so you can easily stay on top of their activities. The SN-KC6816S supports two-level passwords, which means that you can create different user profiles with different levels of access. This helps to protect sensitive data from unauthorized access. The console can also be connected to up to 16 computers directly, or it can be cascaded to control up to 256 computers. It supports both USB and PS2-VGA connections, and it has an HDB15 port for connecting an external VGA monitor. The SN-KC6816S has a 1U rack-mountable housing, so it can be easily installed in a server rack. It also comes with a full-size 99-key keyboard with an integrated number pad and a built-in touchpad with a trackball. The SafeNet SN-KC6816S is a versatile and powerful KVM switch that is perfect for businesses of all sizes. It is easy to use and provides a secure way to control multiple computers from a single console.is a 16-port KVM switch that allows you to control up to 16 computers from a single console. It has a built-in 18.5-inch widescreen LCD monitor with a resolution of 1920x1080, which gives you a clear and concise view of all 16 computers at once. The SN-KC6816S also has an auto-scan feature that automatically monitors selected computers so you can quickly identify any problems. It supports two-level passwords, which allow you to create different user profiles with different levels of access, which can help to protect sensitive data from unauthorized access. The console can also be connected to up to 16 computers directly, or it can be cascaded to control up to 256 computers. It supports both USB and PS2-VGA connections, and it has an HDB15 port for connecting an external VGA monitor. It also has a 1U rack-mountable housing, so it can be easily installed in a server rack. It comes with a full-size 99-key keyboard with an integrated number pad and a built-in touchpad with a trackball. This makes it easy to input data and navigate the KVM switch's menus.
