The

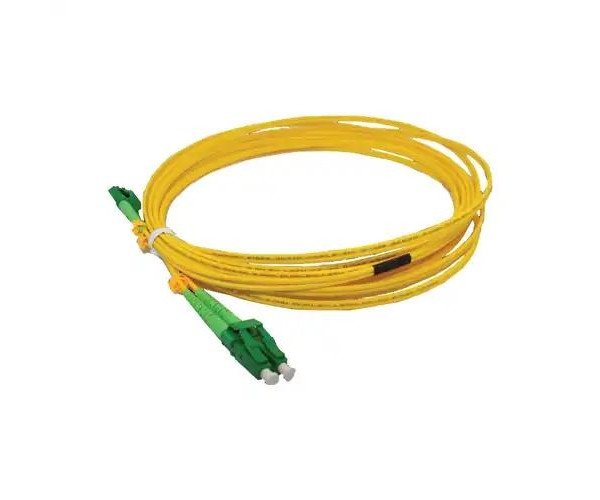

Safenet 3 Meter SM Duplex Fiber LC/APC Patch Cord (Model: 2422-3031YL) provides a
high-performance fiber optic connection designed for use between two
LC/APC-equipped devices. With its
9/125μm single-mode fiber core, this patch cord ensures
fast and efficient data transmission. Thus, making it ideal for high-speed networks and applications that demand reliable, low-loss connectivity.
Built to withstand demanding conditions, this patch cord features a
tight buffer fiber with a diameter of
0.9mm, surrounded by
four sheaves of china yarn for added strength and durability. The
white jacket provides additional protection, ensuring
long-lasting performance. Its
low attenuation of
0.4 dB/km at 1310nm and
0.3 dB/km at 1550nm guarantees
outstanding signal quality over long distances. Therefore, making it a top choice for professionals in
telecommunications,
data centers, and
enterprise networks.
Specifications of the Safenet 3 Meter SM Duplex Fiber LC/APC Patch Cord (Model: 2422-3031YL)
| Specification |
Details |
| Brand |
Safenet |
| Model |
2422-3031YL |
| Length |
3 meters |
| Fiber Type |
Single-mode 9/125μm |
| Connector Type |
LC/APC |
| Buffer Diameter |
0.9 ± 0.05 mm |
| Cladding Diameter |
125 ± 1.0 μm |
| Attenuation (1310nm) |
≤ 0.4 dB/km |
| Attenuation (1550nm) |
≤ 0.3 dB/km |
| Tensile Strength (Short Term) |
120N |
| Crush Resistance |
500N/100mm |
| Bending Radius (Dynamic) |
60 mm |
| Bending Radius (Static) |
30 mm |
| Color |
White |
| Sheave Material |
Four sheaves of china yarn for added strength |
Key Features
- High-Performance Single-Mode Fiber: Features a 9/125μm single-mode fiber core for high-speed, low-loss communication over long distances.
- Durable and Flexible Design: Built with four sheaves of china yarn for added strength and durability, ensuring long-lasting performance.
- Reliable LC/APC Connectors: The LC/APC connectors provide a stable and secure connection, minimizing signal loss.
- Low Attenuation: Offers low attenuation rates of 0.4 dB/km at 1310nm and 0.3 dB/km at 1550nm, ensuring excellent signal quality.
Benefits of the Safenet 3 Meter SM Duplex Fiber LC/APC Patch Cord
- High-Quality Signal Transmission: The 9/125μm single-mode fiber core ensures low-loss, high-quality data transmission over extended distances.
- Durability and Strength: It is constructed with four sheaves of china yarn. This patch cord can withstand high levels of stress, ensuring long-lasting performance.
- Flexible and Easy to Install: The 60mm dynamic bending radius and 30mm static bending radius allow for flexible installations in various environments.
- Reliable Performance: Low attenuation rates of 0.4 dB/km at 1310nm and 0.3 dB/km at 1550nm ensure excellent signal quality for long-distance communication.
