The

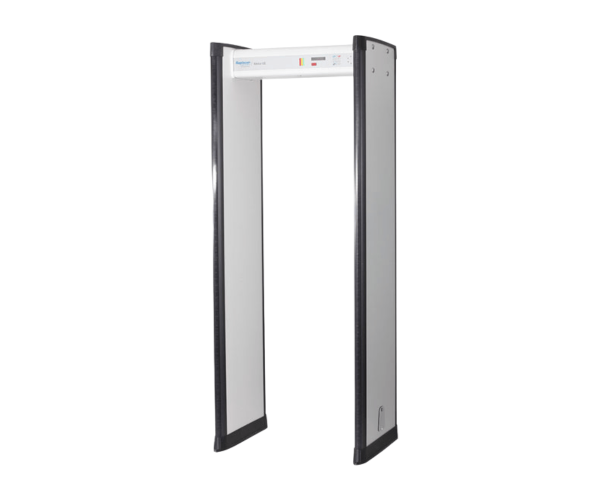

Rapiscan Systems Metor® 6E Archway Metal Detector Gate is an advanced archway metal detector designed for multi-threat detection, offering reliable identification of metal objects and optional radiation detection. With its cutting-edge multi-channel technology, the Metor® 6E provides precise and fast threat resolution by detecting multiple metal items simultaneously. Its unique design ensures high throughput of over 50 people per minute, making it ideal for high-traffic environments such as airports, government buildings, and public venues.
Equipped with a
2-dimensional location function, the Metor® 6E displays the exact location of detected metal objects within the unit’s aperture, using 20 vertical and 3 horizontal segments for accurate pinpointing. The system is also highly configurable with adjustable detection zones and automated calibration for enhanced sensitivity. Additionally, the Metor® 6E offers
excellent interference immunity thanks to its optimized coil design and digital filtering, allowing it to function effectively even in areas with significant electromagnetic interference.
This metal detector can also be integrated with
radiation detection capability to monitor gamma or gamma/neutron radiation, making it a comprehensive solution for multi-threat detection. The device is easy to install, operate, and maintain, offering automated sensitivity calibration and frequency search functions.
Rapiscan Systems Metor® 6E Archway Metal Detector Gate Specifications
| Specification |
Details |
| Detection Zones |
Multiple independently adjustable zones |
| 2D Location Display |
20 vertical and 3 horizontal segments |
| Throughput |
Over 50 persons per minute |
| Radiation Detection |
Optional gamma or gamma/neutron detection |
| Operating Frequency |
Automated search with digital filtering |
| Sensitivity Calibration |
Automatic interactive sensitivity and floor calibration |
| Power Supply |
AC100V-240V, 50/60Hz |
| Operating Temperature |
-20°C to +65°C |
| Dimensions (H x W x D) |
2230mm x 835mm x 580mm |
| Weight |
65kg (net), 70kg (gross) |
| Compliance |
Electromagnetic compatibility standards, CE certified |
Key Features
- Multi-threat detection: Detects both metal objects and radioactive materials (optional gamma or gamma/neutron detection).
- Adjustable detection zones: Independent zone adjustment for uniform detection across the entire aperture.
- 2-Dimensional location function: Pinpoints the position of detected metal objects with high accuracy.
- Excellent interference immunity: Optimized design to resist electromagnetic interference, ensuring reliable performance.
- Automated calibration: Automatic sensitivity and floor calibration for fast setup and accurate detection.
- High throughput: Can process over 50 people per minute, perfect for high-traffic locations.
- Radiation detection upgrade: Optional field upgradeable kit for gamma or gamma/neutron radiation detection.
Applications
- Airports and transportation hubs: Detects concealed metal objects and radioactive materials to ensure passenger safety.
- Government buildings and embassies: Provides a high level of security by scanning individuals for hidden metal objects and radiation.
- Public venues and event spaces: Ideal for high-traffic environments, offering rapid detection without compromising accuracy.
- Nuclear facilities and sensitive areas: Monitors for radioactive materials alongside traditional metal detection for comprehensive threat assessment.
