The

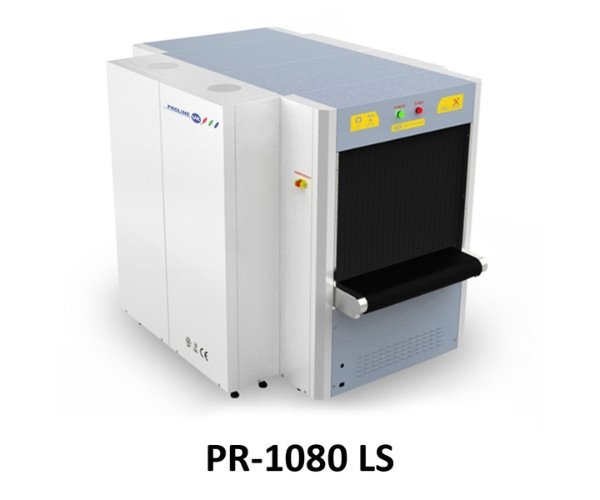

Proline PR-1080 LS X-Ray Baggage Scanner is a cutting-edge security solution designed to meet the evolving demands of global security. Equipped with triple-view imaging technology, this scanner provides a superior level of threat detection by utilizing three X-ray generators positioned in different directions. This advanced scanning system offers unparalleled accuracy, detecting both organic and inorganic objects with high clarity. The Proline PR-1080 LS ensures security personnel can effectively detect weapons, explosives, and other contraband in real time. Therefore, making it an ideal solution for airports, government buildings, and large-scale events.
This high-performance scanner boasts a large tunnel size of 1000mm (W) x 800mm (H), enabling the scanning of larger items with ease. The conveyor speed of 0.50m/s and a load capacity of 200kg ensure efficient, high-throughput operations, with the system capable of scanning up to 2300 items per hour. Its multi-energetic distinguish function displays organic objects in orange, inorganic items in blue, and mixed items in green, providing clear visual differentiation. The Proline PR-1080 LS also features automatic explosive detection, utilizing high-performance parallel computing for precise threat identification.
With a resolution of 40 AWG and the ability to penetrate 38mm of steel, this scanner offers exceptional image quality and detection capabilities. The intuitive image processing software allows for advanced functions such as edge enhancement, image retrieval, and zoom up to 64x. Thus, making it easy to review and analyze scanned items. Additionally, the system comes equipped with Threat Image Projection (TIP) and a remote workstation capability. Therefore further enhancing security team performance.
Proline PR-1080 LS X-Ray Baggage Scanner Specifications
| Specification |
Details |
| Tunnel Size |
1000mm (W) x 800mm (H) |
| Conveyor Speed |
0.50 m/s |
| Conveyor Max Load |
200 kg |
| Resolution |
40 AWG |
| Penetration |
38mm steel |
| Image Zoom |
Up to 64x enlargement |
| Image Processing |
Edge enhancement, image retrieval, zoom |
| Operating Temperature |
5℃ to 40℃ |
| Power Consumption |
<2.0 KVA |
| Noise Level |
<58 dB |
| X-ray Generators |
3 generators with vertical and horizontal beams |
| Film Safety |
ISO1600 film safety |
| Data Storage |
Stores up to 60,000 images in real time |
| Image Max Resolution |
1024 x 1280 pixels |
| Explosives Detection |
Automatic detection with high-performance computing |
Key Features
- Triple-view imaging technology for enhanced detection accuracy.
- High penetration capability: 38mm of steel.
- Real-time image processing with 24-bit depth and 65536 image grey levels.
- Multi-energetic detection: organic (orange), inorganic (blue), and mixed materials (green).
- Automatic explosive detection system for high-performance threat identification.
- Large tunnel size of 1000mm x 800mm, capable of scanning large baggage and cargo.
- High throughput: processes up to 2300 items per hour.
- Advanced image software: zoom, edge enhancement, and image retrieval.
- Threat Image Projection (TIP) and remote workstation support for enhanced operator training and threat detection.
- ISO1600 film safety and low X-ray leakage for safe use in high-traffic areas.
Applications
- Airports: Ideal for high-throughput scanning and comprehensive security screening of large luggage items.
- Government Buildings: Ensures top-level security by detecting potential threats.
- Large Events: Perfect for screening bags and parcels to maintain public safety.
- Corporate and Industrial Sites: Monitors packages for contraband or dangerous materials.
