| Main Features | |
| Product Type | Indoor Full Color LED Display |
| Modules Component | 320 × 160 × 15 mm |
| Pixel Configuration | 1R1G1B (SMD1515) |
| Pixel Density | 250,000 dots/m² |
| Pixel Pitch | 2 mm |
| Pixel Pitch Category | P2 Indoor LED Display |
| Applicable Cabinet Frame | Standard P2 Indoor LED Cabinet |
| Viewing Angle | Horizontal 160° / Vertical 140° |
| Basic Information | |
| Luminance Non-Uniformity | Uniformity: ≥97% |
| Lamp Board Housing | SMD1515 LED |
| Maintenance Method | Front Maintenance |
| Modular Bracket | LED Module Mounting Bracket |
| Protection Level | Front IP30 / Rear IP20 |
| Performance | |
| Driving Method | Constant Current, 1/40 Scan |
| Grey Level | 12–16 Bit |
| Frame Frequency | ≥60 Hz |
| Physical Specification | |
| Weight | 0.37–0.45 kg (Module) |
| Cabinet Dimensions | 640 × 480 mm |
| Cabinet Flatness | ≤1 mm |
| Cabinet Material | Steel |
| Display Features | |
| Display Color | 16.7 Million Colors |
| Contrast Ratio | ≥5000:1 |
| Resolution | 128 × 64 pixels (Crystal listing) |
| Refresh rate | ≥1920–3840 Hz |
| Color Temperature | 3000K–10000K (Adjustable) |
| White Balance Brightness | ≥600 cd/m² |
| Power Source | |
| Power Supply | AC 100–240V, 50/60Hz / DC 5V |
| Average Power Consumption | 150–250 W/m² |
| Maximum Power Consumption | 450–650 W/m² |
| Temperature | |
| Storage Temperature | -20°C to +60°C |
| Working Temperature | -10°C to +40°C |
| Working Humidity | 10%–80% RH |

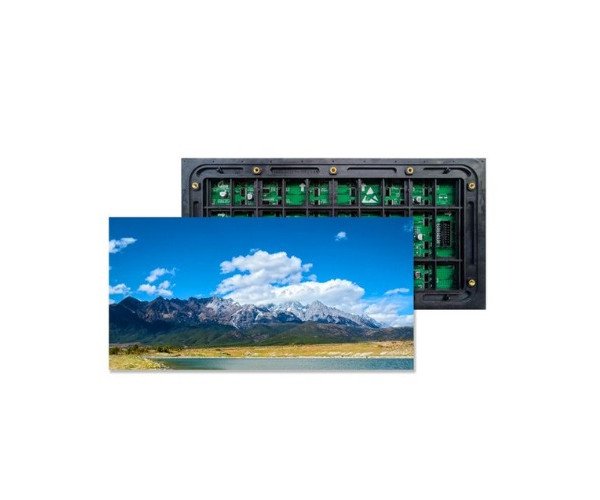

The P2 LED Display is a high-end indoor LED screen designed for environments that demand extremely sharp visuals, vibrant colors, and high-definition content display. With an ultra-fine 2mm pixel pitch, this LED display delivers outstanding image clarity and detail, making it perfect for applications where viewers are close to the screen. It is widely used in corporate boardrooms, retail stores, broadcasting studios, exhibitions, control rooms, and digital signage installations, where premium visual performance is essential.
The P2 LED Display offers exceptional image quality thanks to its 2mm pixel pitch and high pixel density, ensuring that images, videos, and graphics appear extremely detailed and crisp. This fine pixel pitch allows viewers to enjoy high-resolution visuals even at short viewing distances.
With a brightness level of ≥600 cd/m², the display performs perfectly in indoor environments, providing bright and vivid visuals without glare. The contrast ratio of up to 5000:1 enhances color depth and sharpness, making content appear more realistic and visually appealing.
The display also supports wide viewing angles of 160° horizontally and 140° vertically, allowing audiences to view the content clearly from different positions within a room. A high refresh rate of ≥1920–3840Hz ensures smooth video playback and eliminates flickering, which is essential for displaying dynamic content, live broadcasts, or presentations.
Additionally, the system supports control distances up to 100 meters via cable and up to 10 kilometers via optical fiber, allowing flexible installation across various indoor environments.
Why Choose the P2 LED Display?
The P2 LED Display is the perfect solution for businesses that require premium indoor digital signage with ultra-clear image quality.
Users experience exceptional visual clarity and vibrant colors when using the P2 LED Display. The ultra-fine pixel pitch ensures that text, images, and video content appear crisp and detailed, even at close viewing distances. The high refresh rate provides smooth transitions and flicker-free visuals, making it comfortable for extended viewing during presentations, events, and advertising displays.
Its simple installation and versatile control options make it a convenient solution for both permanent and temporary indoor display setups.
Where It Can Be Used?
The P2 LED Display is suitable for various indoor environments, including:
