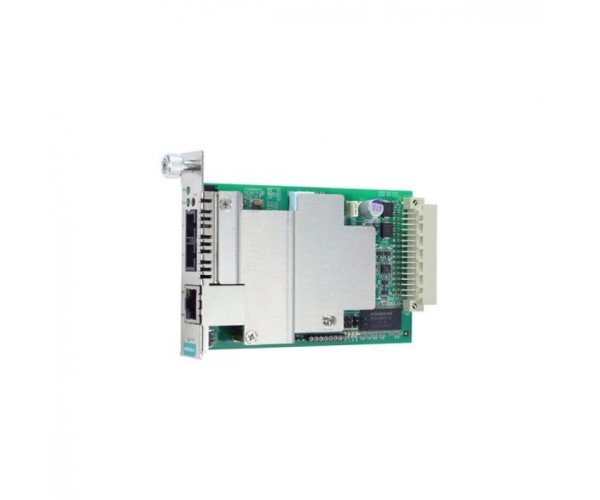

MOXA CSM-400-1213-T Slide-In Ethernet-To-Fiber Media Converter

Product id: 1305
Stock: In Stock
Model: Model

Based on 0 reviews. - Write a review

WhatsApp Inquiry

Key Features

- 1 x 10/100Mbps T(x) port and 1 x 100Mbps F(x) multi-mode port with ST connector
- 12 VDC input power
- -40 to 75°C operating temperature
- LFP (Link Fault Pass-Through) and FEF (Far End Fault)
- Supports store-and-forward mode and pass-through mode
- Auto-negotiation
- Supports IEEE 802.3AH OAM protocol
- Plug and play
- Hot-swappable
- IP-based remote management

View more info

DISCLAIMER

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Crystal Vision Solutions not responsible for any results obtained from using this information.

Main Features
Type	10/100BaseT(X) → 100BaseFX module
Power Consumption	220 mA @ 12 VDC
Performance
MTBF	1 ,454 ,560 hrs
Maximum Data Rate	100 Mbps
Physical Specification
Dimensions	86.8 × 124.3 × 21 mm
Weight	115 g (module only)
Ethernet Port	1 × 10/100BaseT(X) RJ-45
Power Source
Power Input	12 VDC

Overview

The CSM-400 Series consists of slide-in Ethernet-to-fiber managed media converters for the NRack SystemTM. The modules convert media from 10/100BaseT (X) to 100BaseFX (with SC/ST connectors) and can be installed in any NRack SystemTM chassis. The CSM-400 modules support LFP and FEF for easily tracing network link failures and support store-and-forward and pass-through modes, 802.3AM OAM for remote management and monitoring, as well as WDM-type fiber modules to reduce fiber cable cost.
