| Specification | Details |
|---|---|

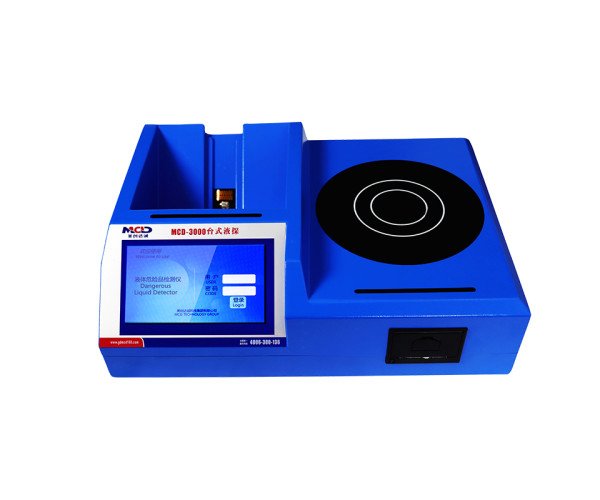

| Model Number | MCD-3000 |
| Detection Principle | Capacitance Array Multi-Channel Detection + Heat Conduction Detection |
| Radioactive Sources | No |
| Sampling Method | Non-contact Sampling |
| Detectable Types | Flammable, Explosive, Corrosive, Toxic Chemicals (See Appendix for Specific Names) |
| Detectable Containers (Non-Metallic) | Plastic, Glass, Ceramic, Paper (Without Tin Foil Layer) |
| Container Size | Diameter: 30mm - 300mm |
| Container Wall Thickness | ≤ 5.0 mm |
| Container Capacity | ≤ 5000ml |
| Fastest Detection Time | ≤ 1.0 second |
| Detectable Containers (Metal) | Iron, Aluminum, Other Metal Containers |
| Container Size | Diameter: 30mm - 200mm |
| Container Wall Thickness | ≤ 0.3 mm |
| Container Capacity | ≤ 2000ml |
| Fastest Detection Time | ≤ 4.0 seconds |
| Detectable Minimum Liquid Volume | ≥ 50ml |
| Detectable Minimum Liquid Height | ≥ 30mm |
| Boot Time | ≤ 2 seconds |
| Alarm Modes | Text, Sound, Light |
| Alarm Reset | Automatic Reset |
| False Alarm Rate | ≤ 1% |
| Component Identification | Displays the Main Component of Dangerous Liquid |
| Recognition Rate | ≥ 90% |
| Hazard Reminder | Provides Hazard Characteristics and Treatment Methods |
| Counting Function | Automatic Counting |
| User Authority Setting | Instrument Management, Brightness Adjustment, Volume Adjustment, Network Connection |
| Automatic Verification | At Boot |
| Display | 7-inch TFT Color Screen (Touch, Adjustable Backlight) |
| Interface | USB, RJ45 Network |
| Data Storage | 1 Million Records |
| Online Upgrade | Sample Database Upgrade by Authorized Users |
| Weight | ≤ 8.0 kg |
| Working Energy Consumption | ≤ 10 W |
| Power Input | AC180-240V (50/60 Hz) |
| Built-in Battery | Capacity: 3000mAh / 12V |
| Working Time | ≥ 5 hours |
| Working Environment | -10°C to 55°C |
| Measured Container Temperature | 0°C to 40°C (Liquid Must Not Be Solidified) |
| Environmental Humidity | ≤ 95% (No Condensation) |
| Storage Environment | Clean, Dry, Ventilated |
| Storage Temperature | -10°C to 55°C |
| Storage Humidity | ≤ 90% |
| Dimensions | 470mm x 340mm x 165mm |
| Accessories | Power Cord, Instruction Manual |
