Product Details
Front Panel
- Mini-PIM Slots
- Power Button
- LEDs
- Reset Config Button
- USB Port
- Console Port
- Console Port
- Management Port
- 1G Ethernet Ports
- 1G SFP Ports
- ESD Point
Rear Panel
- SSD Slot
- Fans
- Power Supply Input
Comparison with Similar Items
| Specification |
SRX340 (Hardware Only) |
SRX340-SYS-JB (Junos Base) |
SRX340-SYS-JE (Junos Enhanced) |
| Description |
SRX340 (Hardware Only, requires SRX340-JSB or SRX340-JSE to complete the System) with 16 GE (8 SFP), 4G RAM, 8G Flash, 4 MPIM slots, including internal power supply, cable, and RMK |
SRX340 Services Gateway with hardware (16 GE, 4 MPIM slots, 4G RAM, 8G Flash, power supply, cable, and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS, and Switching). |
SRX340 Services Gateway with hardware (16 GE, 4 MPIM slots, 4G RAM, 8G Flash, power supply, cable, and RMK) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching, and Application Security). |
| Firewall Performance (max) |
3 Gbps |
3 Gbps |
3 Gbps |
| IPS Performance |
250 Mbps |
250 Mbps |
250 Mbps |
| VPN Performance |
500 Mbps |
500 Mbps |
500 Mbps |
| Maximum Concurrent Sessions |
256,000 |
256,000 |
256,000 |
| New Sessions/Second (sustained, TCP, 3-way) |
10,000 |
10,000 |
10,000 |
| Maximum Security Policies |
2,000 |
2,000 |
2,000 |

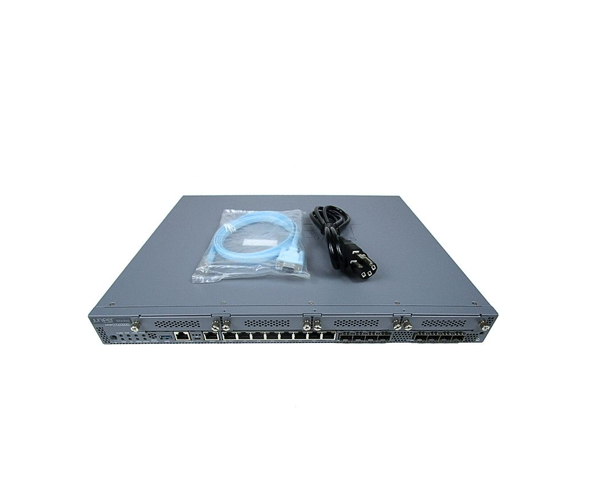

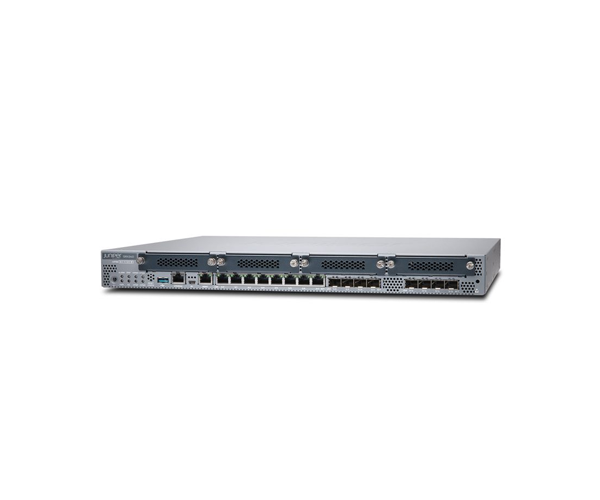

Juniper SRX340-SYS-JB SRX Series Service Gateways
Overview
The SRX340-SYS-JB is a services gateway from Juniper's SRX series, designed to provide secure and reliable connectivity for small to medium-sized enterprises. This model includes hardware (16 GE ports, 4 MPIM slots, 4 GB RAM, 8 GB Flash), power supply, cable, and Rack Mount Kit (RMK), along with Junos Software Base (covering Firewall, NAT, IPSec, Routing, MPLS, and Switching). The chassis is constructed from rigid sheet metal, measuring 1.72 in. (4.36 cm) high, 17.36 in. (44.09 cm) wide, and 14.57 in. (37.01 cm) deep, and it can be installed in standard 800-mm (or larger) enclosed cabinets, 19-in. equipment racks, or telecommunications open-frame racks.
