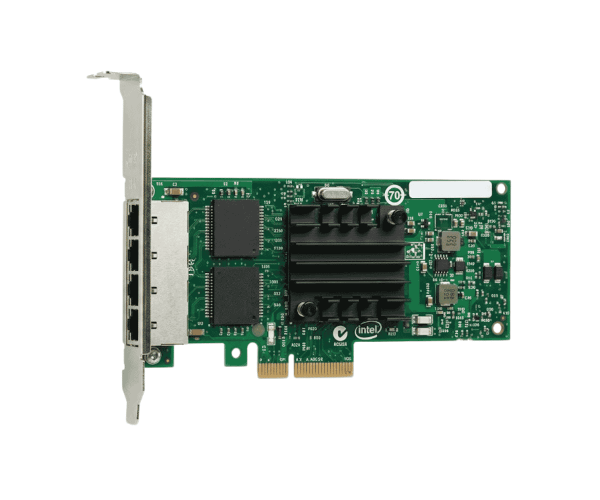

Intel I340-T4 Quad Port 1GbE RJ45 PCIe Server Network Adapter

  • Product id:  25574
  • Stock: In Stock
  • Brand: Intel
  • Model: RJ45
WhatsApp Inquiry

Key Features

    • Network Ports: 4 x RJ45 Gigabit Ethernet Ports
    • Network Speed: 1GbE per Port
    • Interface: PCI Express (PCIe)
    • Connector Type: RJ45
    • Supports Virtualization and Enterprise Networking

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Crystal Vision Solutions not responsible for any results obtained from using this information.

Main Features
Mounting Type PCIe Expansion Slot Mount
Product Type Server Network Interface Card (NIC)
Input Voltage 3.3V DC / 12V DC via PCIe slot
Security Support Access Control Lists (ACL), Advanced Packet Filtering, Halogen-Free Design
Use Case High-Density Enterprise Servers, Virtualization, and Unified Networking
Cooling Passive Heat Sink
Network Port 4 x Gigabit Ethernet Ports
Chipset Intel 82580 Gigabit Ethernet Controller
Management Intel PROSet Utility, IPMI Pass-through, Advanced Network Services (Teaming)
Basic Information
Standards Compliance IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 1588
Storage iSCSI Boot / Native OS iSCSI Initiator Support
Performance
Buffer Integrated on-chip packet buffering
Throughput Up to 1000 Mbps per port bi-directional
Performance Features TCP/UDP/IP Checksum Offload, Large Send Offload (LSO), MSI-X, Receive Side Scaling (RSS)
Compatible Systems Windows Server, Red Hat Enterprise Linux, SUSE Linux, VMware ESXi
Maximum Speed 1 Gbps per port (Up to 4 Gbps combined full-duplex)
Data Transfer Rate 1000 Mbps line rate per port
Physical Specification
Dimensions 13.54 cm x 6.89 cm (5.3 in x 2.7 in)
Weight 0.25 kg
Chassis FR4 PCB / Halogen-Free Materials
Form Factor Plug-in Card (Low-Profile / Full-Height brackets included)
Storage & Interfaces
Port Configuration Quad-Port (4-Port) Configuration
Interface Type PCI Express 2.0 x4 (Operable in x4, x8, and x16 slots)
Connectivity
Remote Management SNMP, RMON, Intel PROSet Management
Connector Type RJ45 (Copper)
Interfaces 10Base-T / 100Base-TX / 1000Base-T
Power Source
Power Supply System Board Slot Powered
Power Efficiency Energy Efficient Ethernet (EEE) / Low power dissipation architecture
Power Consumption 4.3 W (Typical operating power)
Temperature
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% (Non-condensing)

About Intel I340-T4 Quad Port 1GbE RJ45 PCIe Server Network Adapter

The Intel I340-T4 Quad Port 1GbE RJ45 PCIe Server Network Adapter is an enterprise-class Gigabit Ethernet network interface card (NIC) designed for servers, virtualization platforms, and network appliances. Powered by the Intel 82580 Gigabit Ethernet Controller, it provides four independent 10/100/1000 Mbps RJ45 ports over a PCI Express 2.0 x4 interface, enabling high-performance, low-latency networking for demanding business workloads. The adapter supports advanced enterprise technologies such as VLAN tagging, PXE boot, Receive Side Scaling (RSS), TCP/IP offloading, virtualization optimizations, and Intel PROSet management software, making it ideal for data centers, cloud infrastructure, and business-critical server deployments.

Intel I340-T4 Quad Port 1GbE RJ45 PCIe Server Network Adapter in BD

In Bangladesh, the Intel I340-T4 Quad Port 1GbE Server Network Adapter is available through enterprise networking suppliers, server hardware distributors, and IT infrastructure solution providers. It is commonly sourced for server upgrades, firewall appliances, virtualization hosts, and enterprise networking projects. Since this adapter is primarily an enterprise product, availability depends on importer inventory and supplier stock. Buyers should verify server compatibility and bracket type (full-height or low-profile) before purchasing.

Why Choose Intel I340-T4 Quad Port 1GbE RJ45 PCIe Server Network Adapter?

The Intel I340-T4 is a dependable networking solution for organizations that require multiple Gigabit Ethernet connections with enterprise-grade reliability. Its quad-port architecture, hardware acceleration features, and virtualization support make it suitable for servers handling virtualization, routing, firewall services, storage networking, and high-bandwidth business applications. Backed by Intel's proven networking technology, it delivers stable and efficient network connectivity for enterprise environments.

Key Features

  • Quad RJ45 Gigabit Ethernet ports (4 × 10/100/1000 Mbps).
  • Intel 82580 Gigabit Ethernet Controller.
  • PCI Express 2.0 x4 interface.
  • Supports IEEE 802.3, 802.3u, and 802.3ab standards.
  • Supports VLAN tagging (up to 4096 VLANs).
  • PXE boot support.
  • Receive Side Scaling (RSS) support.
  • TCP/IP and iSCSI checksum offloading.
  • Supports Intel PRO Set management software.
  • Includes full-height and low-profile brackets.

Why Buy Intel I340-T4 Quad Port 1GbE RJ45 PCIe Server Network Adapter?

Businesses and IT administrators choose the Intel I340-T4 to expand network connectivity for servers, firewalls, virtualization hosts, and storage systems. Its four Gigabit ports allow multiple network segments, redundancy, load balancing, or dedicated traffic separation while maintaining reliable enterprise-grade performance.

Where Can You Use Intel I340-T4 Quad Port 1GbE RJ45 PCIe Server Network Adapter?

  • Enterprise servers.
  • Virtualization hosts.
  • Firewall and security appliances.
  • Network-attached storage (NAS).
  • Data center infrastructure.
  • Cloud computing platforms.
  • Router and gateway systems.
  • Business network servers.
