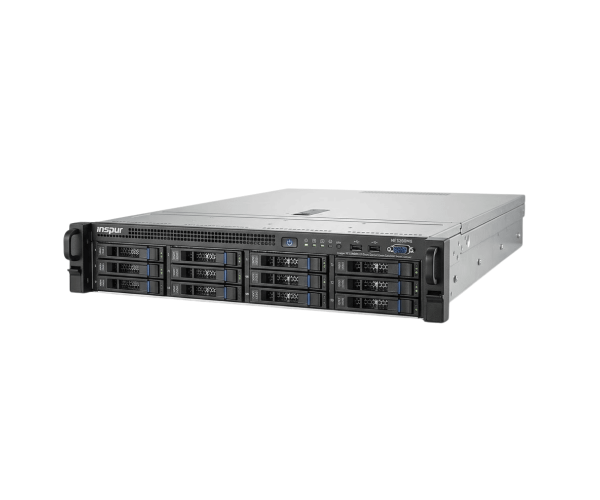

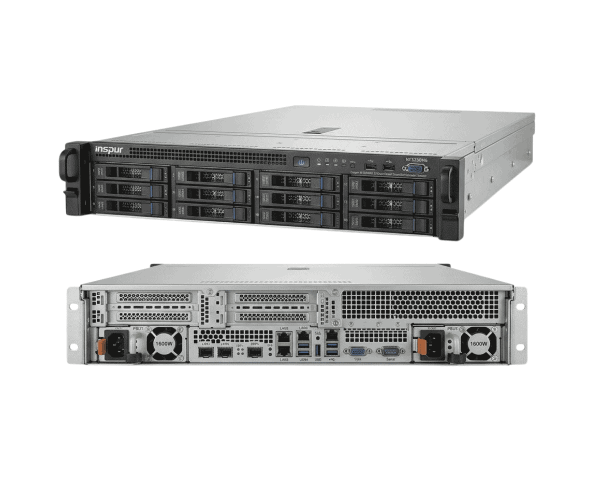

Inspur NF5280M6 2U Dual Socket Xeon Scalable Rack Server

  • Product id:  25780
  • Stock: In Stock
  • Brand: Inspur
  • Model: NF5280M6
WhatsApp Inquiry

Key Features

    • Form Factor: 2U Rack Server
    • Processor: 1-2 x 3rd Gen Intel Xeon Scalable CPU
    • Memory: 32 x DDR4 DIMM, Up to 3200MT/s
    • Storage: Up to 24 x 2.5" SAS/SATA/NVMe
    • Network: Dual 10GbE LAN
    • Expansion: Up to 11 x PCIe Slots

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Crystal Vision Solutions not responsible for any results obtained from using this information.

Main Features
Capacity Up to 32 × DDR4 DIMM Slots
Memory Type DDR4 ECC Registered DIMM (RDIMM), LRDIMM
PCIe Support PCIe 4.0 Support
Memory Technology ECC Memory with Memory Mirroring Support
Application Cloud Computing, Virtualization, AI, Big Data, Data Center
Network Interface Dual 10GbE Onboard Network
RAID Support Hardware RAID Controller Support (RAID 0/1/5/10)
Internal Storage SATA M.2 SSD / E1.S Module Support
Chipset Intel C621A
CPU Architecture Ice Lake 10nm Architecture
Drive Type Hot-Swap SATA/SAS/NVMe Drive Bays
CPU Core Up to 40 Cores per Processor
Memory Channels 8 Memory Channels per CPU
Storage Support SATA / SAS / NVMe SSD Support
CPU Type Intel Xeon Silver / Gold / Platinum Scalable Processor
Management BMC Remote Management / IPMI
Processor support 1 or 2 × 3rd Gen Intel Xeon Scalable Processor (Ice Lake)
Basic Information
Cooling System Hot-Swap Fan Module with Redundant Cooling
Storage Bay Up to 24 × 2.5-inch Hot-Swap SATA/SAS/NVMe Drives
Virtualization Support VMware, Hyper-V, KVM Virtualization
Performance
Threads Up to 80 Cores / 160 Threads (Dual CPU Configuration)
NVMe Support Multiple Hot-Swap NVMe SSD Support
Network Speed 1GbE / 10GbE / 25GbE / 40GbE / 100GbE / 200GbE (with NIC Options)
CPU Core Support Up to 3.6GHz
Bandwidth 8 Memory Channels per CPU
Cache Up to 60MB+ L3 Cache (Depending on CPU Model)
Memory Speed Up to 3200 MT/s (Max)
Physical Specification
Form Factor Form Factor
Expansion Slots Up to 11 × PCIe Expansion Slots
Server Type Enterprise 2U Rack Mount Server
Processor Socket Dual Socket
OCP Expansion OCP NIC 3.0 Network Module Support
Power Source
Power Supply Redundant Hot-Swap PSU Support
TDP Up to 270W
Temperature
Operating Temperature 5°C to 40°C
Storage Temperature -40°C to 70°C
Operating Humidity 8% to 90% Non-Condensing

About Inspur NF5280M6 2U Dual Socket Xeon Scalable Rack Server

The Inspur NF5280M6 2U Dual Socket Xeon Scalable Rack Server  is an enterprise-grade rack server designed for organizations that need strong computing performance, flexible expansion, and reliable operation for demanding workloads. It is built with support for 3rd Generation Intel Xeon Scalable processors and uses the Intel C621A chipset platform. The server supports one or two processors, with each CPU offering up to 40 cores, PCIe 4.0 support, integrated memory controllers, and high-speed interconnect technology. Its 2U rack design provides an efficient balance between performance density and data center space usage. The Inspur NF5280M6 supports up to 32 DDR4 memory modules, allowing businesses to configure high-capacity memory environments for virtualization, databases, enterprise applications, and high-performance computing needs. The Inspur NF5280M6 2U Dual Socket Xeon Scalable Rack Server is designed with enterprise reliability, flexible storage options, and advanced management features. It supports multiple storage configurations, including hot-swap drive options and NVMe storage solutions for high-speed data access. The platform can support PCIe 4.0 expansion, optional OCP NIC 3.0 networking, RAID configurations, and enterprise management through Inspur’s intelligent server management technology. Features such as remote monitoring, fault diagnosis, system alerts, and maintenance-friendly design help reduce downtime and simplify server administration. With its scalable architecture and enterprise-focused reliability, this server is suitable for virtualization platforms, cloud infrastructure, database systems, AI-related workloads, and other business-critical applications.

Inspur NF5280M6 2U Dual Socket Xeon Scalable Rack Server in BD

The Inspur NF5280M6 Socket Xeon Scalable Rack Server is available in Bangladesh through authorized distributors, enterprise hardware suppliers, and IT solution providers. Customers can purchase this server from Crystal Vision Solutions with different configuration options based on processor selection, memory capacity, storage requirements, RAID setup, and networking needs. The final price of the Inspur NF5280M6 depends on product availability, configuration, and market conditions in Bangladesh. Businesses, data centers, and organizations looking for a reliable enterprise server solution can request a quotation to receive the latest pricing and suitable configuration recommendations.

Why Choose Inspur NF5280M6 Dual Socket Rack Server?

The Inspur NF5280M6 Scalable Rack Server provides a powerful combination of processing capability, memory scalability, storage flexibility, and enterprise reliability. With support for Intel Xeon Scalable processors, DDR4 ECC memory, PCIe 4.0 expansion, and advanced server management features, it delivers the performance required for modern business environments. Its flexible architecture allows organizations to upgrade resources according to future requirements, making it a practical choice for companies seeking long-term value, compatibility, and dependable server performance.

Key Features

  • 2U Rack Server Form Factor,
  • Intel C621A Chipset,
  • Supports 3rd Gen Intel Xeon Scalable Processors,
  • Dual Socket Processor Support,
  • Up to 40 Cores per Processor,
  • Up to 32 DDR4 DIMM Slots,
  • DDR4 Memory Support Up to 3200 MT/s,
  • PCIe 4.0 Expansion Support,
  • OCP NIC 3.0 Support,
  • Hot-Swap Storage and RAID Support,

Why Buy Inspur NF5280M6 2U Dual Rack Server?

The Inspur NF5280M6 2U Dual Scalable Rack Server is a suitable investment for organizations that require reliable computing infrastructure with room for future upgrades. Its high-performance Intel Xeon processor support, expandable memory architecture, and flexible storage options help improve productivity and support demanding applications. The server provides strong business value by combining enterprise-grade features, efficient rack design, and scalable hardware options. For companies planning long-term IT infrastructure growth, the Inspur NF5280M6 offers dependable performance and upgrade flexibility.

Where Can You Use Inspur NF5280M6 Xeon Scalable Rack Server?

  • Enterprise Data Centers,
  • Cloud Computing Infrastructure,
  • Virtualization Environments,
  • Database Servers,
  • Business Application Hosting,
  • High Performance Computing (HPC),
  • AI and Machine Learning Infrastructure,
  • Enterprise Storage Systems,
  • Research and Development Computing,
  • Large Scale Web and Application Servers,

Why Choose Crystal Vision Solutions?

Crystal Vision Solutions provides genuine enterprise IT hardware with competitive prices and professional support for customers across Bangladesh. We help businesses select the right server configuration through expert consultation, provide nationwide delivery services, and offer reliable after-sales support. As a trusted IT hardware supplier in Bangladesh, Crystal Vision Solutions focuses on delivering authentic products and dependable solutions for modern business requirements.

Review

Get specific details about this product from customers who own it.

Questions

Have question about this product? Get specific details about this product from expert.

No questions have been asked about this product.

What is the Inspur NF5280M6 2U Dual Socket Xeon Scalable Rack Server price in Bangladesh 2026?

The latest price of Inspur NF5280M6 2U Dual Socket Xeon Scalable Rack Server in Bangladesh depends on availability, specifications, and current market conditions. For quick pricing updates and stock details, reach out to us via WhatsApp or email.
