The

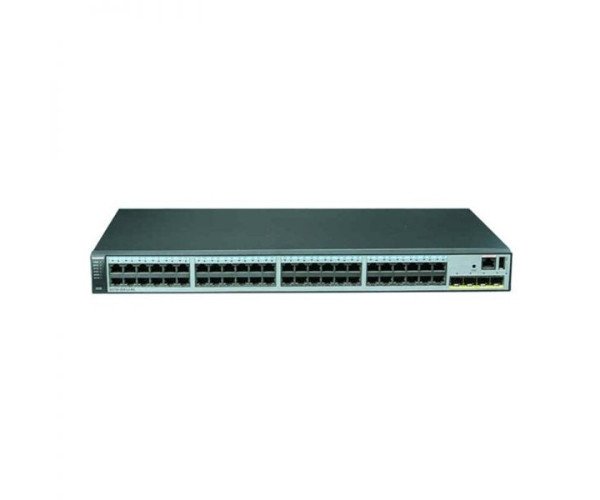

Huawei S5720S-52X-LI-AC is a high-performance, 1U rack-mounted Ethernet switch tailored for enterprise networking needs. Designed for seamless scalability and efficient operation, this switch provides
48 Gigabit Ethernet ports (10/100/1000BASE-T) along with
4 high-speed 10G SFP+ uplink ports, delivering versatile connectivity options for various network applications. With robust surge protection, low power consumption, and compact dimensions, it is an ideal choice for offices, branch networks, and data center access layers.
The S5720S-52X-LI-AC is built with reliability and efficiency in mind. It offers an impressive
mean time between failures (MTBF) of 41 years, ensuring long-term operational stability. Its power-efficient design, intelligent fan speed control, and compliance with Energy Efficient Ethernet (EEE) standards help reduce energy costs. Thus, making it a sustainable and eco-friendly networking solution.
Huawei S5720S-52X-LI-AC Specifications
| Feature |
Specification |
| Form Factor |
1U rack-mounted |
| Fixed Ports |
48 x 10/100/1000BASE-T, 4 x 10G SFP+ ports |
| Memory (RAM) |
512 MB |
| Flash Memory |
240 MB |
| MTBF |
41 years |
| MTTR |
2 hours |
| Power Consumption |
Max: 50.3 W, Typical: 31.6 W |
| Surge Protection |
Service ports: ±7 kV, Power supply: ±6 kV |
| Operating Temperature |
-40°C to +70°C (-40°F to +158°F) |
| Storage Temperature |
-40°C to +70°C |
| Noise Level |
Less than 44.5 dBA |
| Dimensions (W x D x H) |
442.0 mm x 220.0 mm x 43.6 mm |
| Weight |
3.4 kg (7.5 lb) |
| Voltage Range |
Rated: 100V to 240V AC, Max: 90V to 264V AC |
| Relative Humidity |
5% to 95%, non-condensing |
| Altitude |
0-5000 m (0-16404 ft.) |
| Management |
SNMP, RMON, Web GUI, CLI |
Key Features
- High Port Density: Offers 48 Gigabit Ethernet ports for end-user connectivity and 4 high-speed 10G SFP+ uplink ports for enhanced network throughput.
- Energy Efficiency: Supports Energy Efficient Ethernet (EEE) standards. Therefore, reducing power consumption during low traffic periods, and features a typical power consumption of only 31.6W.
- Exceptional Reliability: With an MTBF of 41 years and an availability of over 99.999%, the switch ensures minimal downtime and maximum uptime.
- Advanced Surge Protection: Equipped with ±7 kV surge protection on service ports and ±6 kV surge protection on power supply interfaces, safeguarding against electrical disturbances.
- Flexible Deployment: Compact 1U form factor with quiet operation (noise level under 44.5 dBA). This makes it suitable for office environments and data center installations.
- Enhanced Management: Supports advanced management features like SNMP, RMON, and a web-based GUI. Therefore, providing easy configuration and monitoring capabilities.
Applications of Huawei S5720S-52X-LI-AC
- Enterprise Networks: Ideal for connecting workstations, IP phones, and wireless access points in corporate offices and branch networks.
- Data Center Access Layer: Provides efficient and high-speed connectivity for servers and storage devices at the data center access layer.
- Campus Networks: Offers reliable performance and scalability for educational institutions, ensuring seamless connectivity across campus buildings.
- Surveillance and Security: Suitable for connecting IP cameras and network video recorders (NVRs) in a surveillance network. Thus, delivering stable and high-bandwidth connections.
What is the Price of Huawei S5720S-52X-LI-AC Convergence Switch in Bangladesh (BD) ?
In Bangladesh, the price of
convergence switches depends on the brand, model, and features. Typically, prices start at around
BDT 80,000 for entry-level models and can go beyond
BDT 500,000 for advanced switches with high port density and enhanced performance capabilities.
Convergence switches are designed to handle data, voice, and video traffic seamlessly. Thus, making them an essential choice for modern enterprise networks and data centres.
When it comes to purchasing convergence switches,
Crystal Vision Solutions is your best partner. They offer an extensive range of top-quality convergence switches from leading brands like
Cisco, Juniper, and Aruba. This ensures that you will get reliable and future-proof solutions. Crystal Vision Solutions provides expert guidance, competitive pricing, and authentic products with full warranty support. Their exceptional customer service and tailored solutions make it easy for businesses in Bangladesh to build robust and efficient network infrastructures.
