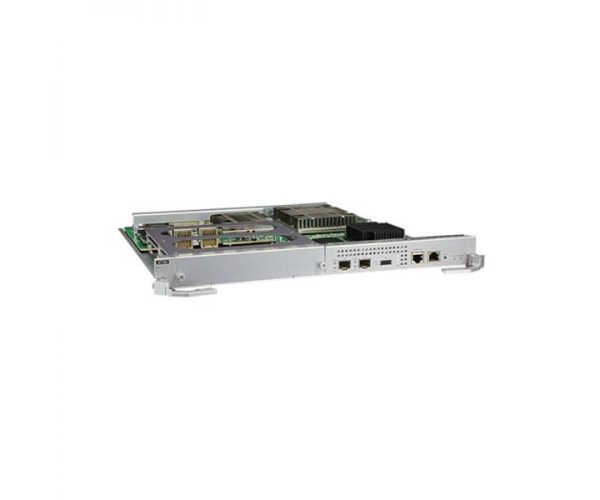

Huawei ES1D2SRUH000 is the main control and management unit specifically designed for the S7706 and S7712 series. This powerful system integrates the main control unit, switching unit, and system maintenance unit, delivering seamless performance, distributed data forwarding, and advanced network management features. The hot-swappable design and redundancy backup ensure uninterrupted network services, while its support for OAM and CSS further enhances operational efficiency. This main control unit is essential for enterprises that demand robust, scalable, and reliable networking.
With 4 GB of memory and 64 MB flash, the ES1D2SRUH000 ensures smooth system management and fast data access. Moreover, the 2 GB eUSB card is used to store system software, logs, and configuration files, thus providing a secure and efficient data storage solution.
Huawei ES1D2SRUH000 - Main Control Unit Specifications
| Specification |
Details |
| Product Name |
Huawei ES1D2SRUH000 Main Control Unit |
| Applicable Models |
S7706, S7712 |
| Memory |
4 GB |
| Flash |
64 MB |
| eUSB Card |
2 GB |
| Distributed Forwarding |
Supported |
| Redundancy Backup |
Supported (Hot standby mode) |
| OAM |
Supported (802.1ag, MPLS OAM, BFD) |
| CSS Support |
Supported (with ES1D2VS04000) |
| Hot Swap |
Supported |
| Dimensions (W x D x H) |
394.7 mm x 426.8 mm x 35.1 mm (15.5 in. x 16.8 in. x 1.4 in.) |
| Weight |
3.46 kg (7.63 lb) |
| Max Power Consumption |
183 W (including subcards) |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Storage Temperature |
-40°C to +70°C (-40°F to +158°F) |
| Humidity |
5% to 95% (non-condensing) |
| Compliance |
RoHS, REACH, WEEE, EMC, Safety Standards |
Key Features
- Distributed forwarding for concurrent data forwarding across multiple planes.
- OAM functionality for enhanced operation, administration, and maintenance.
- CSS support for system consolidation and network scalability.
- Redundancy backup with hot standby mode to ensure network reliability.
- Hot-swappable main control unit for uninterrupted operations during hardware changes.
Product Applications
- Enterprise Networks: Enhancing data throughput and network reliability in large-scale operations.
- Data Centers: Providing robust network control with high redundancy and scalability.
- Service Providers: Supporting advanced service operations with OAM and MPLS functionality.
Price of Huawei ES1D2SRUH000 - Main Control Unit in Bangladesh
Huawei network modules and cards provide efficient, high-performance solutions for expanding and optimizing your network infrastructure. With advanced technology, these modules enhance network speed, flexibility, and scalability, thus making them ideal for both enterprise and industrial applications.
When you purchase
Huawei network modules and cards from
Crystal Vision Solutions, you receive genuine products, competitive pricing, and expert customer support.
Crystal Vision Solutions ensures fast shipping and tailored guidance, therefore making it the best choice for your networking needs.
