The

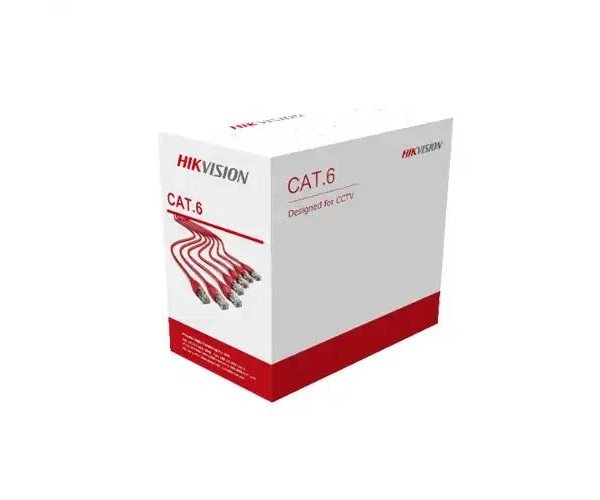

Hikvision DS-1LN6U-SC0 CAT6 305 Meter UTP Cable delivers high-speed, reliable data transmission, making it an ideal choice for modern networking environments. As a Category 6 cable, it supports higher bandwidth and faster data speeds than lower-category options. Therefore, ensuring optimal performance in commercial, industrial, and residential applications.
With solid-bare copper conductors made from 99.95% pure copper, this cable guarantees excellent conductivity and signal integrity. The HDPE insulation protects against external interference, and the cable’s separator reduces crosstalk, enhancing overall performance.
Specifications of the Hikvision CAT6 305 Meter UTP Cable (Model: DS-1LN6U-SC0)
| Specification |
Details |
| Brand |
Hikvision |
| Model |
DS-1LN6U-SC0 |
| Length |
305 meters (1000 feet) |
| Category |
Cat6 |
| Cable Type |
UTP (Unshielded Twisted Pair) |
| Conductor Material |
99.95% pure solid-bare copper |
| Conductor Diameter |
0.55 ± 0.005 mm (23 AWG) |
| Insulation Material |
HDPE (High-Density Polyethylene) |
| Insulation Thickness |
0.98 ± 0.05 mm |
| Outer Sheath Material |
PVC, flame retardant, orange color |
| Outer Sheath Diameter |
6.00 ± 0.30 mm |
| Impedance |
100 ± 15Ω at ≤ 100MHz; 100 ± 25Ω at 100-250MHz |
| Delay Skew |
≤ 45 ns/100 m |
| Operating Voltage |
60V |
| Tensile Strength |
≥ 13.5 Mpa before aging, ≥ 12.5 Mpa after aging |
| Compliance |
ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0 |
| Cold Bending Resistance |
-20 ± 2°C for 4 hours, no visible cracks |
Key Features
- Solid-Bare Copper Conductor: The conductor is made of 99.95% pure copper. Thus, ensuring excellent electrical conductivity and signal integrity for smooth data transfer.
- HDPE Insulation and Separator for Enhanced Performance: The HDPE insulation and separator reduce crosstalk and signal interference. Therefore, ensuring consistent and high-speed data transmission.
- Complies with ISO/IEC, ANSI/TIA, and RoHS Standards: This cable adheres to industry standards for data transmission quality and environmental safety.
- 305 Meters of Length for Flexible Installations: With 305 meters of cable, it is ideal for long-distance installations in large networking setups.
Benefits of the Hikvision CAT6 305 Meter UTP Cable
- Superior Data Transmission: The 99.95% pure copper conductor ensures consistent signal integrity and fast data speeds for reliable networking.
- Durable and Flexible Design: Built with high tensile strength, it can withstand harsh environments, making it ideal for industrial or commercial installations.
- Certified for Safety and Performance: Complies with ISO/IEC11801, ANSI/TIA-568-C.2, and RoHS 2.0 standards, ensuring safe and eco-friendly installations.
- Flexible Installation Options: The 305-meter length provides flexibility for large installations, while the rip cord makes installation easier.
- PoE Compatible: The cable’s design supports Power over Ethernet (PoE), simplifying the installation of network devices.
Price of Hikvision 305 Meter CAT6 UTP Cable in Bangladesh ?
Hikvision cables are engineered for optimal performance in security and surveillance systems, ensuring reliable data transmission with minimal interference. Designed to support high-definition video signals, these cables provide the perfect foundation for smooth, uninterrupted camera operation. Whether for IP or analog systems,
Hikvision cables deliver excellent signal integrity, making them an essential component of any robust security setup.
When you buy
Hikvision cables from
Crystal Vision Solutions, you benefit from guaranteed authenticity, competitive pricing, and dedicated customer support.
Crystal Vision Solutions ensures prompt delivery and expert advice, helping you choose the right cables to maximize the performance and reliability of your security system.
