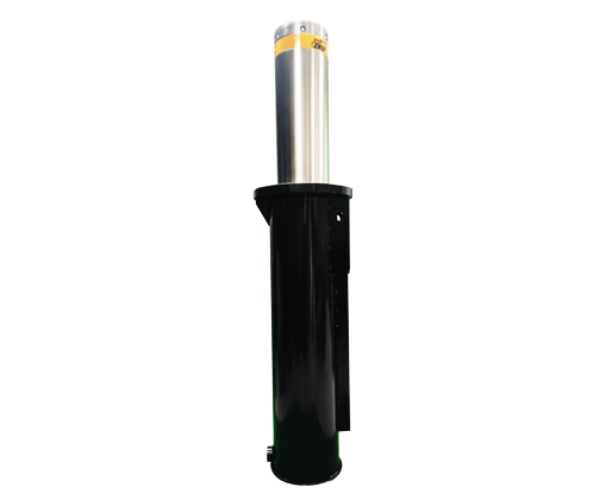

About of HA104-600 Hydraulic Automatic Bollard
The
HA104-600 Hydraulic Automatic Bollard is a high-performance security solution designed to control access and protect properties. Featuring hydraulic operation, this bollard offers efficient, automatic deployment and retraction, ensuring reliable, durable, and safe traffic management in both commercial and residential environments.
Specification
| Feature |
Details |
| Model |
HA104-600 |
| Type |
Hydraulic Automatic Bollard |
| Power Supply |
220V AC |
| Hydraulic Pressure |
15 MPa |
| Operation Speed |
3 seconds (raise/lower) |
| Bollard Height |
600mm |
| Bollard Diameter |
273mm |
| Material |
High-strength steel, anti-corrosion |
| Control Type |
Remote control, Manual override |
| Motor Power |
0.75kW |
| Weight |
45kg |
| IP Rating |
IP68 |
| Mounting Type |
Surface-mounted |
| Working Temperature |
-20°C to +70°C |
| Safety Features |
Anti-crash, Collision protection |
Description
Hydraulic Automatic HA104-600 Bollard in BD
The
HA104-600 Hydraulic Automatic Bollard is a state-of-the-art security solution designed to prevent unauthorized access and ensure the safety of high-security zones. With its hydraulic mechanism, it offers rapid, automatic deployment for effective traffic management and entry control, ideal for urban environments, parking lots, and government facilities.
User Experience
The
HA104-600 Hydraulic Automatic Bollard provides a seamless user experience with its smooth and reliable operation. Once installed, users can raise or lower the bollard in just 3 seconds with a remote control or manually if needed. The hydraulic system ensures that the bollard operates smoothly even in harsh weather conditions. It’s designed to withstand heavy traffic and accidental collisions, with safety features that automatically prevent damage. Whether for controlling vehicle access or protecting pedestrian zones, the
HA104-600 Hydraulic Automatic Bollard offers an easy and effective way to manage traffic flow and enhance security.
Why Choose the HA104-600 Hydraulic Bollard?
- Fast Operation: Raises and lowers in just 3 seconds for quick access control.
- Robust Construction: Made from high-strength steel for long-lasting durability and corrosion resistance.
- Hydraulic Mechanism: Provides smooth, reliable operation even under heavy use.
- Safety Features: Includes anti-crash and collision protection features to prevent accidents.
- Versatile Control: Can be operated remotely or manually for flexibility in various situations.
- Weather Resistant: IP68 rating ensures reliable performance in all weather conditions.
- Space-Efficient: Ideal for both commercial and residential areas where space is limited.
Installation Steps
- Prepare the Site: Select a location for the HA104-600 Hydraulic Bollard where traffic control is needed. Clear the area of obstacles.
- Excavate the Hole: Dig a hole of appropriate size for the bollard, ensuring the surface is level and firm.
- Mount the Bollard: Position the bollard securely in the hole, ensuring it’s straight and aligned with the intended direction of operation.
- Connect Hydraulic System: Install the hydraulic system, connecting the pipes and hoses to the bollard and power supply.
- Wire the Control System: Connect the remote control system and manual override to the bollard's motor.
- Test Operation: Power on the system and test the bollard’s raising and lowering functions to ensure everything works smoothly.
- Safety Sensor Setup: Install and calibrate any additional safety sensors to detect obstacles and prevent accidents.
- Finalize Installation: Secure the bollard in place and complete any finishing work for a neat, professional installation.
What is the Price of the HA104-600 Hydraulic Automatic Bollard in Bangladesh?
The latest price of in Bangladesh depends on quantity.
Crystal Vision Solutions ensure This product has the best market price in Bangladesh. Our product is 100% original and lowest price in Bangladesh. All kinds of services are the best in Bangladesh, and contact us for any information and latest price.
