The

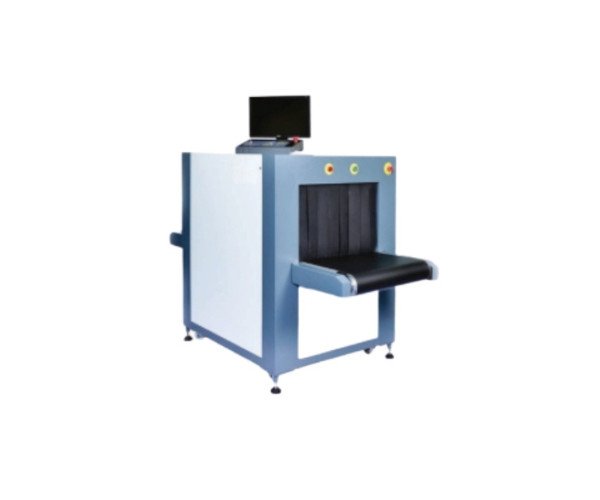

Guard Spirit XJ10080D X-ray Baggage Scanner is a powerful and reliable security solution designed for efficient and thorough baggage screening. With dual x-ray generators, this scanner ensures precise imaging for high-security facilities, transportation hubs, and large events. The XJ10080D provides real-time imaging with advanced material distinction through multi-energy color coding, highlighting organic, inorganic, and mixed objects for easy identification. Equipped with high-resolution 19" LCD monitors and customizable zoom features, it offers unmatched clarity to ensure maximum security.
This advanced x-ray scanner supports multiple enhancements, including edge and super image enhancement for detailed object visibility, and adjustable brightness to improve image clarity in different penetration conditions. Its user-friendly design includes a one-key shutdown, automatic ray control, and a self-diagnosis function for easy maintenance. This makes it an ideal choice for high-traffic environments where security and efficiency are essential.
Guard Spirit XJ10080D X-ray Baggage Scanner Specifications
| Feature |
Details |
| Product Name |
X-ray Luggage Scanner |
| Model |
XJ10080D |
| Color |
Gray |
| Tunnel Size |
1000 mm (W) x 800 mm (H) |
| Conveyor Max Load |
230 kg |
| Wire Resolution |
38 AWG |
| Conveyor Speed |
0.22-0.23 m/s |
| Film Safety |
ISO 1600 |
| X-ray Generator Orientation |
Downward |
| Tube Current |
0.4-0.7 mA (adjustable) |
| Anode Voltage |
100-160 kV (adjustable) |
| Noise Level |
<58 dB |
| Image Display |
Dual 19" LCD monitors, 1280x1024 res. |
| Image Storage |
Up to 100,000 images |
| Safety Certification |
CE, ISO, FCC, ROHS |
| Operating Temperature |
0°C to 45°C |
| Storage Temperature |
-20°C to 60°C |
| Power Requirements |
220 VAC ±10%, 50 Hz ±3 Hz |
| Power Consumption |
1.0 KW (Max) |
Key Features
- Dual X-ray Generators: Ensures accurate and detailed imaging, reducing the chance of missed items.
- Multi-Energy Color Imaging: Displays organic objects in orange, inorganic objects in blue, and mixed objects in green for quick identification.
- High-Resolution Display: Dual 19" LCD monitors with 1280x1024 resolution and customizable brightness.
- Enhanced Image Storage: Stores up to 100,000 real-time images, with 64x zoom for in-depth observation.
- Edge and Super Enhancement: Provides clear contour definition and detailed object visibility.
- Self-Diagnosis Function: Detects system malfunctions, ensuring prompt maintenance and reducing downtime.
Applications
- Public Transportation Hubs: Railway stations, subways, and airports benefit from the scanner's high-capacity screening capabilities.
- Logistics and Postal Services: Efficiently screens parcels and packages for potential hazards.
- Exhibition Centers and Events: Ideal for temporary security setups and large-scale gatherings.
- Government Facilities: Ensures strict security measures for government and military installations.
Price of Guard Spirit XJ10080D X-ray Baggage Scanner in Bangladesh (BD)
The
X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from
Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, ensuring you find the best security solution for your needs.
