FPR2130-NGFW-K9 Specification and Overview
Overview

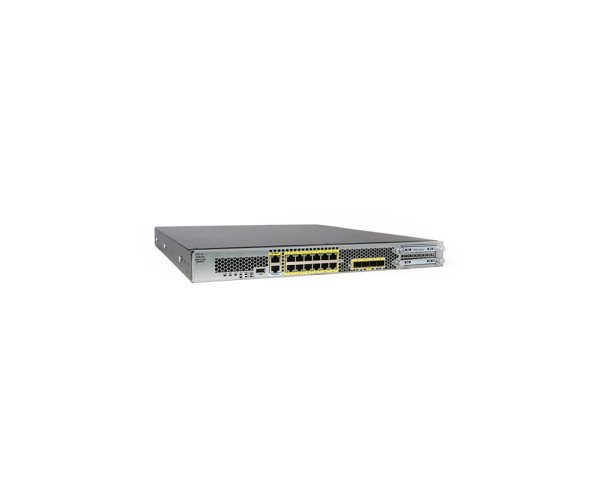

The Cisco Firepower 2130 NGFW Appliance is part of the Cisco Firepower 2100 Series, a family of four threat-focused next-generation firewall (NGFW) security platforms designed to deliver business resiliency through superior threat defense. These appliances provide exceptional sustained performance even when advanced threat functions are enabled. They feature a unique dual multicore CPU architecture that optimizes firewall, cryptographic, and threat inspection functions simultaneously. The FPR2130-NGFW-K9 is a 1U rack-mounted unit with one network module bay, suitable for deployment from the Internet edge to the data center. It supports Network Equipment Building Standards (NEBS) compliance, ensuring high reliability and availability.
Product Details
The FPR2130-NGFW-K9 is equipped with multiple Ethernet ports and a network module slot to support a variety of network configurations and high-performance needs. Key features include:
- High Performance: Advanced threat functions with dual multicore CPU architecture.
- Scalability: Up to 24 Ethernet ports, ideal for diverse network requirements.
- Integrated Management: A dedicated management Ethernet port for simplified network management.
- Redundancy and Reliability: Dual power supplies for increased reliability and uptime.
- Environmental Versatility: Suitable for various temperature and altitude conditions, including NEBS compliance for high availability in demanding environments.
Comparison to Similar Items
| Model |
FPR2130-NGFW-K9 |
FPR2120-NGFW-K9 |
| Product Description |
Cisco Firepower 2130 NGFW Appliance, 1RU, 1 x Network Module Bays |
Cisco Firepower 2120 NGFW Appliance, 1RU |
| Dimensions (H x W x D) |
1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
| Form Factor |
1RU |
1RU |
| I/O Module Slots |
1 NM slot |
0 |
| Integrated I/O |
12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 10 Gigabit (SFP+) Ethernet interfaces |
12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 1 Gigabit (SFP) Ethernet interfaces |
| Network Modules |
(FPR-NM-8X10G) 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network module |
None |
| Maximum Number of Interfaces |
Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module with 8x10G SFP+) |
Up to 16 total Ethernet ports (12x1G RJ-45, 4x1G SFP) |
| Storage |
1 x 200 GB, 1 x spare slot (for MSP) |
1 x 100 GB, 1 x spare slot (for MSP) |
Detailed Specifications
Hardware Specifications
| Specification |
Details |
| Dimensions (H x W x D) |
1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) |
| Form Factor |
1RU |
| I/O Module Slots |
1 NM slot |
| Integrated I/O |
12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 10 Gigabit (SFP+) Ethernet interfaces |
| Network Modules |
(FPR-NM-8X10G) 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network module |
| Maximum Number of Interfaces |
Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP+, and network module with 8x10G SFP+) |
| Integrated Network Management Ports |
1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) |
| Serial Port |
1 x RJ-45 console |
| USB |
1 x USB 2.0 Type-A (500mA) |
| Storage |
1 x 200 GB, 1 x spare slot (for MSP) |
| Power Supplies |
Single integrated 250W AC power supply. |
| AC Input Voltage |
100 to 240V AC |
| AC Maximum Input Current |
< 6A at 100V |
| AC Maximum Output Power |
400W |
| AC Frequency |
50 to 60 Hz |
| AC Efficiency |
>89% at 50% load |
| DC Input Voltage |
-48V to -60VDC |
| DC Maximum Input Current |
< 12.5A at -48V |
| DC Maximum Output Power |
350W |
| DC Efficiency |
>88% at 50% load |
| Redundancy |
1+1 AC or DC with dual supplies |
| Fans |
1 hot-swappable fan module (with 4 fans) |
| Noise |
56 dBA @ 25C, 77 dBA at highest system performance |
| Rack Mountable |
Yes, mount rails included (4-post EIA-310-D rack) |
| Weight |
19.4 lb (8.8 kg) with 1 power supply, 1 NM, 1 fan module, 2 SSDs |
Environmental Specifications
| Specification |
Details |
| Operating Temperature |
32 to 104°F (0 to 40°C) or NEBS operation |
| Nonoperating Temperature |
-4 to 149°F (-20 to 65°C) |
| Operating Humidity |
10 to 85% noncondensing |
| Nonoperating Humidity |
5 to 95% noncondensing |
| Operating Altitude |
10,000 ft (max) or NEBS operation |
| Nonoperating Altitude |
40,000 ft (max) |
| NEBS Operation |
|
| Operating Altitude |
0 to 13,000 ft (3962 m) |
| Operating Temperature (Long Term) |
0 to 45°C, up to 6,000 ft (1829 m); 0 to 35°C, 6,000 to 13,000 ft (1829 to 3964 m) |
| Operating Temperature (Short Term) |
-5 to 55°C, up to 6,000 ft (1829 m) |
The Cisco Firepower 2130 NGFW Appliance combines advanced threat defense capabilities with high performance and flexibility, making it a powerful choice for modern enterprise security needs. Its robust architecture and comprehensive feature set ensure it can handle demanding security tasks while maintaining optimal performance and reliability.
