Specification
| Specification |
Details |
| Brand |
Check Point |
| Product Name |
CPAP-SG1570R-SNBT-AC |
| Appliance Type |
Ruggedized Next Generation Appliance |
| Power Supply |
Industrial AC Power Supply |
| Network Interface |
8 x 1GbE |
| Storage |
32GB SSD |
| Memory |
4GB RAM |
| Firewall Throughput |
3.2 Gbps |
| VPN Throughput |
450 Mbps |
| Threat Prevention Throughput |
640 Mbps |
| Concurrent Connections |
200,000 |
| Maximum Sessions |
200,000 |
| Routing Features |
Dynamic (BGP, OSPF, RIP), Policy-based |
| Advanced Networking & Clustering |
VLAN Trunking, Link Aggregation |
| Environmental Compliance |
Temperature: -40°C to 70°C, Humidity: 5% to 95% non-condensing |
| Physical Dimensions |
Height: 4.3 cm, Width: 44.5 cm, Depth: 31.9 cm |
| Operating Temperature |
-40°C to +75°C |
| Storage Temperature |
-40°C to +85°C |
| Humidity |
Up to 95% (non-condensing) |
| Approvals and Certifications |
FCC, CE, UL |

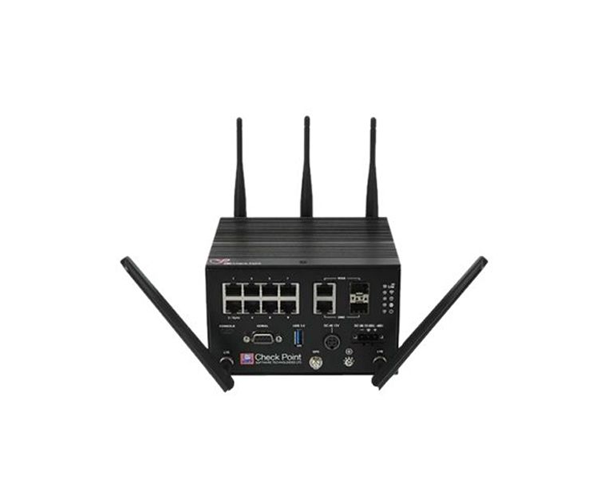

CPAP-SG1570R-SNBT-AC Overview
The Check Point CPAP-SG1570R-SNBT-AC is a robust next-generation security appliance designed for rugged industrial environments. It features an industrial AC power supply and advanced threat prevention technologies to ensure reliable network security even in extreme conditions. Ideal for sectors such as utility substations, transportation systems, and factory floors, it offers robust physical security features and remote management capabilities through Check Point Smart-1.
Quick Spec
- Brand: Check Point
- Model: CPAP-SG1570R-SNBT-AC
- Power Supply: Industrial AC
- Hardware Type: Ruggedized Appliance
- Protection Type: Next Generation
Product Features
- Industrial-grade design equipped for harsh environments.
- Next-generation threat prevention technologies.
- Integrated AC power supply tailored for industrial usage.
- Robust physical security features.
- Remote management capabilities through Check Point Smart-1.
Product Applications
- Utility substations requiring durable network security.
- Transportation systems needing tough protection against cyber threats.
- Factory floors exposed to extreme temperatures and physical conditions.
Supported Options
- Accessory | Model
- Extended Warranty: CPAP-SG1570R-WNTY
- Rack Mount Kit: CPAP-SG1570R-RMK
- Spare Power Supply: CPAP-SG1570R-PSU
Compare to Similar Items
| Model |
Differences |
| CPAP-SG1570 |
Lacks ruggedized features, designed for standard environments. |
| CPAP-SG1570W |
Wireless capabilities but not industrial-grade. |
| CPAP-SG1600R |
Higher performance but at a significantly higher cost. |
