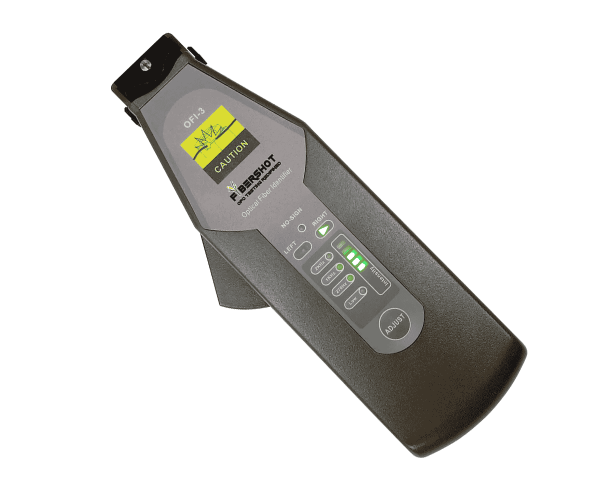

About Caution OFI-3 Optical Fiber Identifier
Caution OFI-3 Optical Fiber Identifier is a high-end portable testing tool used for detection of optical fibers without disconnecting or damaging them. It detects the presence of traffic, direction of signal, and tone signals in single-mode fibers, making it simple and safe to locate live fibers in a short span of time. OFI-3 is ideal for fiber network installation, maintenance, and trouble-shooting applications.
Caution OFI-3 Optical Fiber Identifier in BD
In Bangladesh, the Caution OFI-3 Optical Fiber Identifier is used extensively by FTTH engineers, network service providers, and optical technicians. It offers fast and non-invasive fiber identification, which makes it perfect for telecommunication operators and data centre specialists. Its small size and immediate response make it one of the most sought-after optical fiber identifiers in BD.
User Experience of the Caution OFI-3 Optical Fiber Identifier
The users prefer Caution OFI-3 Optical Fiber Identifier for its reliability and simplicity. The device provides instantaneous and accurate detection of signal direction and existence without any network service disruption. It has an ergonomic handle and easy-to-read indicators, providing comfort with long hours of operation. It is perceived to be suitable for working conditions by the majority of professionals because of its long-lasting design and battery duration.
Why Choose Caution OFI-3 Optical Fiber Identifier?
Choosing the Caution OFI-3 Optical Fiber Identifier ensures safety, accuracy, and efficiency in fiber optic operations. It identifies live fibers without cutting or closing them, measures optical signals with great sensitivity, and supports different types of fibers. It's both laboratory and field use-friendly and is an indispensable instrument for any optical technician.
Key Features
- Detects live traffic, tone signal, and direction of signal
- Supports single-mode fibers: 0.25 mm bare, 0.9 mm tight, and 3.0 mm jacketed
- Operating wavelength range: 900 nm to 1650 nm
- Low insertion loss for non-disruptive testing
- Integrated LED indicators for signal presence and direction
- Identifies test tones at 270 Hz, 1 kHz, and 2 kHz
- Easy push-button operation with fast response time
- Small and lightweight package for field use
- Long battery life with low power consumption
- Robust and safe to use in telecom environments
- Operating the Caution OFI-3 Optical Fiber Identifier
- Insert the fiber into the appropriate clamp head for its coating diameter (0.25 mm, 0.9 mm, or 3.0 mm).
- Turn on the unit and observe the LED lights for live traffic or tone presence.
- Check the direction of the optical signal as pointed by arrow indicators.
- When testing is completed, remove the fiber slowly to avoid bending stress.
- Turn off the device when not in use to conserve battery power.
Where Caution OFI-3 Optical Fiber Identifier Can Be Used?
- FTTH and FTTx deployment and maintenance
- Data center fiber tracing and cable management
- Telecom and ISP live fiber detection
- Optical line maintenance and re-routing
- Fiber network restoration and fault location
Why Buy From Crystal Vision Solution?
Crystal Vision Solutions offers the Caution OFI-3 Optical Fiber Identifier at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier.
