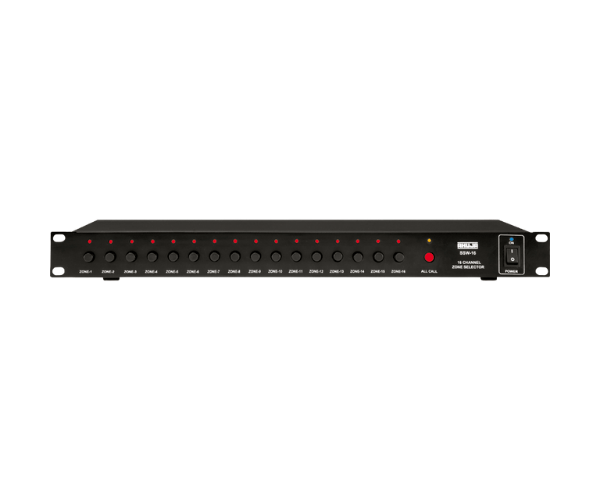

About the Ahuja SSW-16M 16 Channel Zone Selector
The
Ahuja SSW-16M 16 Channel Zone Selector is a compact and reliable manual zone selector designed to route a 100V audio signal to one or more of up to 16 zones. It features a 100V input and 16 individually switchable 100V outputs, making it perfect for large venues needing precise audio control. Additionally, the
Ahuja SSW-16M allows for ALL CALL activation when multiple units are used, ensuring seamless communication across all zones.
Specification
| Feature |
Details |
| Brand |
Ahuja |
| Model |
SSW-16M |
| Number of Zones |
16 |
| 100V Input |
1 x 100V |
| 100V Outputs |
16 x 100V |
| Front Panel Controls |
Manual Switch for Each Zone |
| LED Indication |
For Selected Zones |
| Built-In Relay |
For ALL CALL Activation |
| Maximum Voltage |
230V |
| Input Impedance |
10 kΩ |
| Output Impedance |
600Ω |
| Dimensions (LxWxH) |
484 x 280 x 92 mm |
| Weight |
4.5 kg |
| Mounting |
Rack Mountable |
Description
Ahuja SSW-16M 16 Channel Zone Selector in Bangladesh
The
Ahuja SSW-16M 16CH Zone Selector is available in Bangladesh at various audio equipment retailers and online stores. It is easily accessible to professionals looking for efficient zone management solutions for large-scale audio installations. Its availability makes it an ideal choice for users in need of flexible audio routing systems.
User Experience of Ahuja SSW-16M 16 Channel Zone Selector
Users of the
Ahuja SSW-16M 16CH Zone Selector appreciate its simple, manual operation and sturdy build. The ability to switch between zones with ease and the LED indication for selected zones makes it a user-friendly device. The built-in relay for ALL CALL functionality is particularly useful in large venues where quick, simultaneous communication is needed. The
Ahuja SSW-16M proves to be reliable and effective, even in demanding environments.
Why Choose the Ahuja SSW-16M 16 Channel Zone Selector?
The
Ahuja SSW-16M 16CH Zone Selector is the perfect choice for professionals who need precise control over multiple audio zones. Its manual operation, with provisions for switching a 100V signal across 16 zones, ensures seamless audio distribution. When used in conjunction with other units, the
Ahuja SSW-16M offers an ALL CALL function, enabling simultaneous activation across all zones. The unit's simplicity, reliability, and ease of use make it an essential tool for large venues like conference halls, auditoriums, and hotels.
Key Features
- 16 Channel Manual Selector: Switches a 100V audio signal to up to 16 individual zones.
- ALL CALL Activation: Allows for activation across all zones when using multiple units, via the LOOP THROUGH facility.
- LED Indication: Provides clear visual feedback of selected zones.
- Built-In Relay: Ensures seamless ALL CALL activation.
- Durable Design: Rugged construction for use in professional audio setups.
- Rack Mountable: Fits perfectly into standard 19-inch racks for easy integration.
Setup the Ahuja SSW-16M 16 Channel Zone Selector
Setting up the
Ahuja SSW-16M 16CH Zone Selector is easy and straightforward. Begin by mounting the unit in a standard 19-inch rack. Connect the 100V input from your audio system to the input terminal of the
Ahuja SSW-16M. Then, route the 100V output to the 16 zones you want to manage. You can manually switch each of the 16 zones on or off using the front-panel controls. If using multiple units, you can enable ALL CALL by connecting the LOOP THROUGH facility.
Once you connect everything, power on the system, and you can immediately start managing your audio zones.
Where it Can Be Used?
The
Ahuja SSW-16M 16CH Zone Selector is ideal for a wide range of commercial and professional audio applications. It is commonly used in large venues such as hotels, conference rooms, auditoriums, and shopping malls, where managing multiple audio zones is essential. The zone selector is also perfect for sound systems in schools, houses of worship, and offices, enabling clear and effective sound distribution across different areas. With its ability to manage 16 separate zones, the
Ahuja SSW-16M ensures precise control over audio coverage in large, complex environments.
