| Specification |
Details |
| Cable Type |
CAT-6 UTP |
| Conductor Type |
23AWG solid bare copper |
| Conductor Size |
23AWG |
| Insulation |
HDPE |
| Outer Sheath |
LSZH (low smoke, zero halogen) |
| Compliance |
TIA/EIA 568-C.2, EN50173-1, ISO/IEC 11801 Category 6 |
| Data Transfer Rate |
Up to 1000 Mbps |
| Maximum Distance |
Up to 100 meters |
| Cross Filler |
Yes (improves NEXT and ANEXT performance) |
| Available Lengths |
305 meters, 500 meters, and 1000 meters |
| Available Colors |
Orange, Blue, and Black |
| Applications |
Gigabit Ethernet, Power over Ethernet (PoE), Voice over IP (VoIP), Videoconferencing, and Security systems |
| Features |
High-performance CAT-6 cable, Solid bare copper conductors, LSZH sheath, Cross filler |

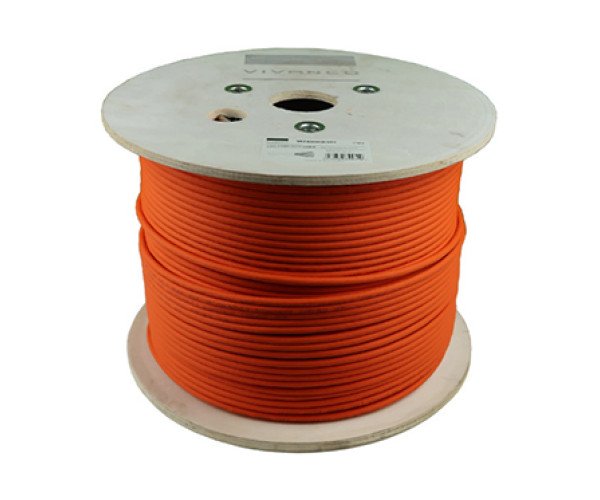

Vivanco CAT-6 U / UTP Unshielded LSZH Cable
Vivanco CAT-6 U/UTP Unshielded LSZH Cable is a high-performance network cable that is designed to support 1000BASE-T Gigabit Ethernet and other high-speed applications. It is also suitable for PoE (Power over Ethernet) applications. The cable is made with 23 AWG solid copper conductors and is insulated with polyethylene. The conductors are twisted together in pairs to reduce crosstalk and interference. The cable is also shielded with a low-smoke, zero-halogen (LSZH) jacket, which makes it suitable for use in sensitive environments such as data centers and hospitals. The Vivanco CAT-6 U/UTP Unshielded LSZH Cable is a high-performance cable designed for demanding networking applications. With its 23AWG solid bare copper conductors, HDPE insulation, and LSZH sheath, it meets Category 6 specifications, ensuring excellent performance. Compliant with industry standards such as TIA/EIA 568-C.2, EN50173-1, and ISO/IEC 11801 Category 6, this cable supports data transfer rates of up to 1000 Mbps over distances of up to 100 meters. Featuring a cross-filler design, the cable offers improved NEXT and ANEXT performance, reducing crosstalk and enhancing overall performance. The Vivanco CAT-6 U/UTP Unshielded LSZH Cable is suitable for various networking applications, including gigabit Ethernet, power over Ethernet (PoE), voice over IP (VoIP), videoconferencing, and security systems. Available in lengths of 305 meters, 500 meters, and 1000 meters, and in colors such as orange, blue, and black, this cable provides flexibility in installation options. Overall, the Vivanco CAT-6 U/UTP Unshielded LSZH Cable is a reliable choice for those seeking high-performance cabling solutions for demanding networking applications. Check Crystal Computers to get the Vivanco cat6 cable at the best price in Bangladesh.
