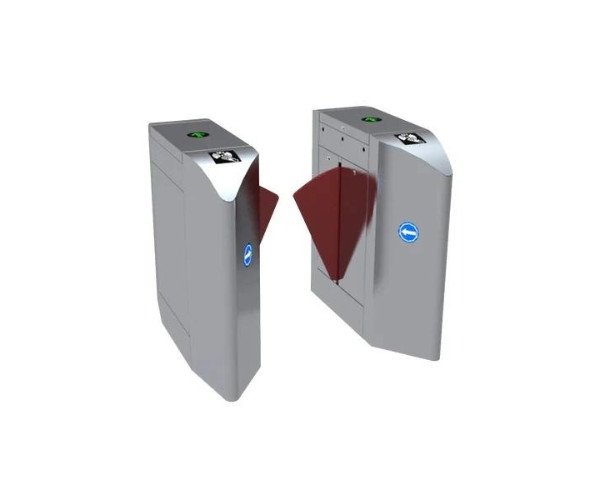

The Uniqscan UT-FLA-5707 Flap Turnstile enhances security while ensuring smooth and efficient pedestrian flow. Designed for indoor and sheltered outdoor environments, this full-automatic intelligent mechanism operates on a brushless DC motor, delivering low noise and stable performance. With advanced anti-pinch and anti-collision features, the UT-FLA-5707 reliably manages access in high-traffic areas like corporate offices, transportation hubs, and government facilities.
The turnstile is constructed with 304 stainless steel and utilizing cutting-edge laser, bending, and polishing technologies. This flap turnstile excels in performance and durability. Its bi-directional movement offers flexibility in access control, and the automatic reset function locks the turnstile after a set time. Equipped with LED passage indicators, the turnstile easily integrates with various card readers, including magnetic stripe cards, barcode cards, ID cards, and IC cards, thus making it highly versatile and user-friendly.
Uniqscan UT-FLA-5707 Flap Turnstile Specifications
| Specification |
Details |
| Size |
1200 x 380 x 980 mm |
| Material |
304 stainless steel |
| Flap Opening/Closing Time |
0.2 seconds |
| Passage Width |
≤ 600 mm |
| Speed |
35 people per minute (adjustable) |
| Motor |
24V / 30W brushless |
| MCBF |
5 million cycles |
| Direction |
Bi-directional |
| Infrared Sensors |
3 pairs |
| Power Fail Function |
Flap opens automatically when power is off |
| Operating Temperature |
-40°C to 80°C |
| Humidity Range |
5% – 90% |
| Integration |
Supports magnetic stripe cards, barcode cards, ID cards, IC cards |
Key Features
- High-Level Automatic Mechanism: Powered by a 24V brushless DC motor, ensuring smooth, quiet, and reliable operation.
- Safety Functions: Includes anti-pinch, anti-collision, and anti-shock features to safeguard users during access.
- Power Fail Protection: Automatically opens the flap when power is off, meeting fire protection requirements.
- Unified Electrical Interface: Allows seamless integration with a wide range of access control systems, including magnetic stripe cards, barcode, ID, and IC cards.
- Customizable Settings: The turnstile features passage mode settings and LED indicators to provide real-time access status and improve user experience.
- Durable Build: Constructed with 304 stainless steel, ensuring long-lasting performance and resistance to wear and tear.
Advantages
- Fast Operation: The flap opens and closes in just 0.2 seconds, facilitating rapid access and reducing congestion.
- High Traffic Handling: Capable of processing up to 35 people per minute, making it ideal for busy environments.
- Enhanced Safety: Features an automatic reset and anti-pinch mechanism, protecting users from accidents during operation.
- Wide Adaptability: Works seamlessly in both indoor and sheltered outdoor environments with an operational temperature range from -40°C to 80°C.
Price of Uniqscan UT-FLA-5707 Flap Turnstile in Bangladesh (BD)
The
Uniqscan Flap Turnstile delivers efficient, secure access control, therefore making it ideal for high-traffic areas like offices, airports, and public venues. Its sleek design, combined with advanced technology, ensures smooth operation, enhanced security, and rapid pedestrian flow.
When you buy the Uniqscan Flap Turnstile from
Crystal Vision Solutions, you benefit from authentic products, competitive pricing, and expert customer support.
Crystal Vision Solutions offers fast shipping and personalized guidance, ensuring the best solution for your access control needs.
