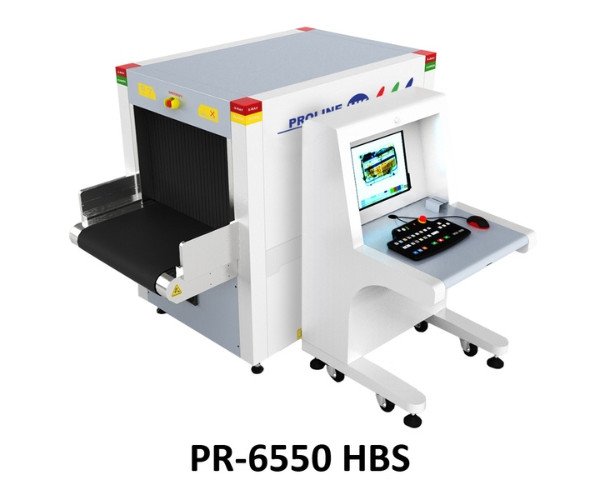

The
Proline PR-6550 HBS X-Ray Baggage Scanner is a versatile and advanced security scanning system designed for high-demand environments. With a tunnel size of 655mm x 550mm, this scanner can accommodate larger items. Therefore, making it ideal for scanning baggage at airports, public events, law enforcement checkpoints, and high-security buildings. Its cutting-edge dual-energy X-ray imaging technology ensures precise threat detection by offering high-resolution images.
With a penetration capability of 32mm in steel and a wire resolution of 40 AWG, the Proline PR-6550 HBS provides exceptional clarity in identifying concealed threats. It’s designed for high-throughput scenarios, boasting a conveyor speed of 0.22m/s and the ability to scan up to 170kg of luggage. The advanced image processing system allows for up to 64x image enlargement, along with enhanced features which helps operators quickly identify suspicious objects. Furthermore, the explosives and narcotics detection function flags items based on their atomic signatures, thus enhancing the scanner’s capability to detect hidden threats.
Proline PR-6550 HBS X-Ray Baggage Scanner Specifications
| Specification |
Details |
| Tunnel Size |
655mm (W) x 550mm (H) |
| Conveyor Speed |
0.22m/s |
| Conveyor Max Load |
170kg |
| X-ray Generator |
140-160kV, Oil-Cooled |
| Penetration |
32mm (steel) |
| Wire Resolution |
40 AWG |
| Image Display |
1280x1024 pixels, high resolution |
| Image Enhancement |
1-64x zoom, color/BW, pseudo color, etc. |
| Image Storage |
Up to 100,000 images |
| Explosives/Narcotics Detection |
Based on atomic signatures |
| Power Consumption |
1.4 KW (max), 1.0 KW (working) |
| Operating Temperature |
0℃-45℃ |
| Storage Temperature |
-40℃-60℃ |
| Noise Level |
<58db |
Key Features
- Dual-energy X-ray imaging for precise threat detection.
- Large tunnel size (655mm x 550mm) to accommodate bigger items.
- Excellent penetration of 32mm steel, ensuring clear detection even in dense materials.
- Advanced image processing: up to 64x enlargement, high/low penetration, pseudo color, and more.
- Explosives and narcotics detection based on atomic signatures.
- Threat Image Projection (TIP) for operator training and vigilance maintenance.
- High-resolution display with 1280x1024 pixels for accurate analysis.
- Built-in diagnostics and dual-direction scanning for optimal performance.
Applications
- Airports: Comprehensive baggage screening for identifying concealed weapons, explosives, and contraband.
- Public Events: Ensures visitor safety by scanning bags and personal items for potential threats.
- Government Facilities: Provides a high level of security for sensitive locations.
- Corporate Security: Monitors incoming packages to prevent unauthorized or dangerous items from entering the premises.
Price of Proline PR-6550 HBS X-Ray Baggage Scanner in Bangladesh (BD)
The
X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from
Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, ensuring you find the best security solution for your needs.
