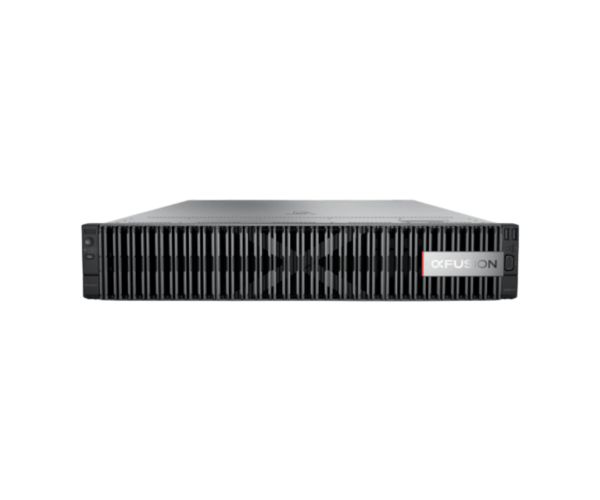

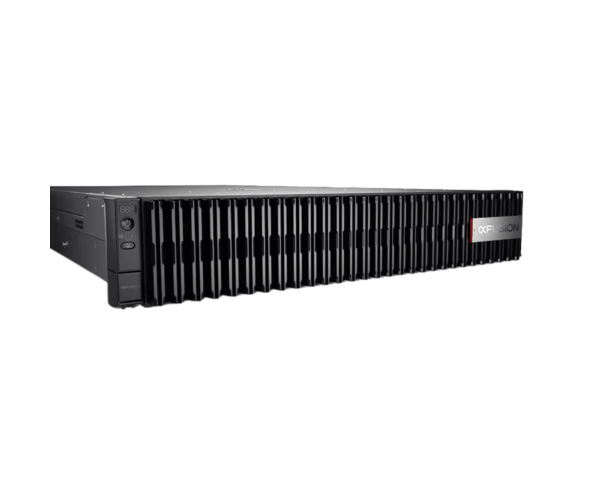

Huawei FusionServer 2288H V7 2U 2-Socket Rack Server

Huawei FusionServer 2288H V7 2U 2-Socket Rack Server

Product id: 24554
Stock: In Stock
Brand: Huawei
Model: FusionServer 2288H V7

Based on 0 reviews. - Write a review

WhatsApp Inquiry

Key Features

- Processor: Intel Xeon 4th/5th Gen
- Memory Slots: 32 DDR5 + 16 CXL
- Memory Speed: 5600 MT/s
- Storage: SAS/SATA/NVMe/M.2
- Drive Bays: 8–33 × 2.5", 12–18 × 3.5", 4/8/16/24 NVMe

View more info

DISCLAIMER

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Crystal Vision Solutions not responsible for any results obtained from using this information.

Main Features
Drive Bays	8–33 × 2.5", 12–18 × 3.5", 4/8/16/24 NVMe
Processor	Intel Xeon 4th/5th Gen TDP per CPU Up to 385W
RAID Support	0,1,10,1E,5,50,6,60
PCIe	19 (8 PCIe5, 2 FlexIO)
Chipset	Emmitsburg PCH
Memory Speed	5600 MT/s
Storage type	SAS/SATA/NVMe/M.2
PSU Type	900–3000W Platinum/Titanium Hot-swap
Max Memory Capacity	48 DIMMs
Memory Slots	32 DDR5 + 16 CXL
Basic Information
GPU Support	4 dual-width / 14 single-width
Hot-Swappable Support	Yes
Management	iBMC (Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM), optional FusionDirector
Physical Specification
Dimensions	86.1×447×798 mm
Weight	27–32 kg approx
Fans	4 × N+1 Hot-swap
Form Factor	Form Factor
Network Slots	2 FlexIO OCP 3.0 NIC
Temperature
Operating Temperature	5–50°C
Storage Temperature	-40–85°C

About the Huawei FusionServer 2288H V7 2U 2-Socket Rack Server

The Huawei FusionServer 2288H V7 2U 2-Socket Rack Server designed for enterprise and data center environments. Supporting dual Intel Xeon 4th/5th Gen processors, DDR5 memory with CXL technology, and flexible storage (SAS, SATA, NVMe, M.2), it delivers high performance, reliability, and scalability for virtualization, AI workloads, and cloud computing.

Huawei FusionServer 2288H V7 2U 2-Socket Rack Server in Bangladesh

The Huawei FusionServer 2288H V7 is available in Bangladesh for enterprises, data centers, and IT companies requiring high-performance servers. It is widely used for virtualization, cloud platforms, AI computing, and large databases. BD users benefit from flexible hot-swappable storage, GPU support, and 24/7 operational reliability for mission-critical workloads.

User Experience of Huawei FusionServer 2288H V7 2U 2-Socket Rack Server

Users experience stable performance under heavy workloads, with easy maintenance thanks to hot-swappable drives, redundant PSUs, and N+1 redundant fans. The server supports GPU acceleration, CXL memory, and high-speed networking, ensuring low latency, high throughput, and seamless execution of virtualization, AI, and cloud computing tasks.

Why Choose this Huawei FusionServer 2288H V7 2U 2-Socket Rack Server?

The Huawei FusionServer 2288H V7 is ideal for enterprises needing high reliability, scalability, and performance. With dual Intel Xeon processors, DDR5 + CXL memory, flexible storage options, GPU support, and redundant power/fan modules, it ensures continuous operation. Advanced iBMC and optional FusionDirector simplify server monitoring and management in demanding environments.

Key Features

2U Rack Server supporting 1 or 2 Intel Xeon 4th/5th Gen processors (up to 385W TDP each)

32 DDR5 DIMM slots with 16 additional CXL DIMMs (up to 48 DIMMs supported)

Flexible storage: SAS, SATA, NVMe SSDs, M.2 SSDs, hot-swappable drives

RAID 0, 1, 10, 1E, 5, 50, 6, 60 support with optional supercapacitor for cache protection

PCIe Expansion: Up to 19 slots (8 PCIe 5.0 supported), 2 FlexIO slots for OCP 3.0 NICs

GPU Support: Up to 4 dual-width or 14 single-width GPU cards

Hot-swappable counter-rotating fans (N+1 redundancy)

900–3000 W Platinum/Titanium hot-swappable redundant PSUs

Enterprise-grade security: TPM 2.0, secure boot, chassis intrusion detection, admin/power-on passwords

Management via iBMC or optional FusionDirector, with Redfish, SNMP, IPMI 2.0, HTML5 KVM support

Operating Temperature: 5°C – 50°C, compliant with ASHRAE Classes A1–A4

Dimensions: 86.1 × 447 × 798 mm (H × W × D) for both 2.5” and 3.5” drive chassis
