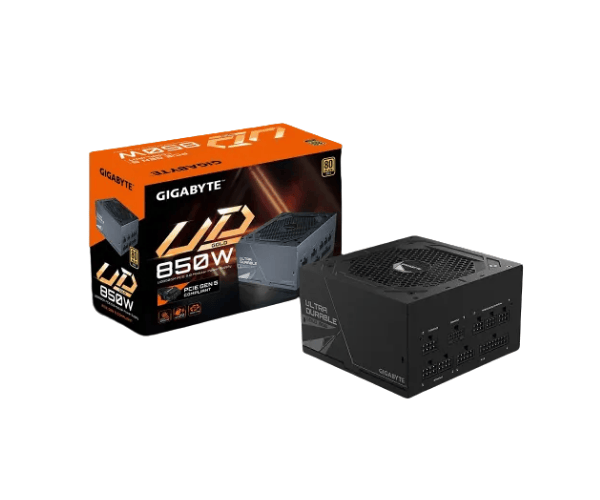

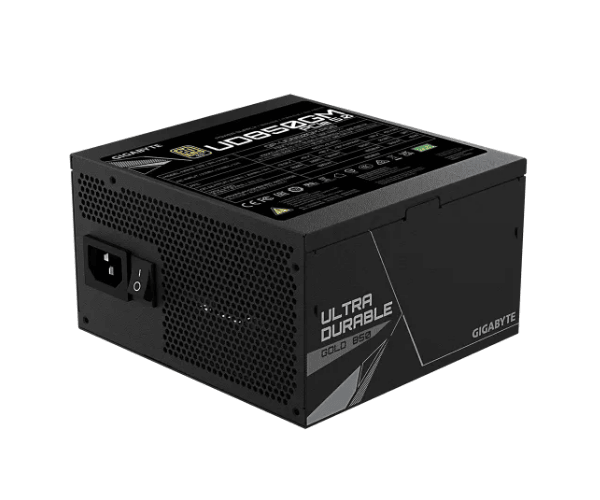

Overview The Gigabyte UD850GM PG5 850W 80 Plus Gold Full Modular Power Supply
The
Gigabyte UD850GM PG5 850W 80 Plus Gold Full Modular Power Supply is an 80 PLUS Gold certified powerhouse, powered by an output capacity of 850 W. Having a fully modular design, this power supply provides neat and easy cable management while a hydraulic bearing fan with a diameter of 120mm does the job in terms of providing silent and efficient cooling. Suitable for High-End gaming and professional build.
Specification
| Specification |
Details |
| Brand |
Gigabyte |
| Model |
UD850GM PG5 |
| Fan Size |
120mm Hydraulic Bearing (HYB) Fan |
| Efficiency |
90% at typical load |
| Certification |
80 Plus Gold |
| Modular Type |
Fully Modular |
| Total Power |
850W |
| Input Voltage |
100-240 VAC (full range) |
| Input Frequency Range |
60-50 Hz |
| Input Current |
12-6 A |
| Main Power Connector |
ATX/MB 20+4 Pin x 1 (610mm) |
| CPU Connector |
CPU/EPS 4+4 Pin x 2 (600mm+200mm) |
| PCI-E Connector |
PCI-e 12+4 Pin x 1 (700mm) |
|
PCI-e 6+2 Pin x 4 (600mm+150mm) |
| SATA Connector |
SATA x 8 (600mm+150mm) |
| Floppy Connector |
4 Pin Peripheral x 3 + 4-Pin Floppy x 1 |
|
(500mm+120mm+120mm+150mm) |
Description
Gigabyte UD850GM PG5 850W 80 Plus Gold Full Modular Power Supply in BD
The
Gigabyte UD850GM PG5 850W 80 Plus Gold Full Modular Power Supply is available in Bangladesh. To build a wanted high-performance system, stable power and clean cable management are an essential requirement. Hence, one can procure this from all the available electronics and hardware stores. User
Experience of Gigabyte UD850GM PG5 850W 80 Plus Gold Full Modular Power Supply
Gigabyte UD850GM PG5 850W 80 Plus Gold Full Modular Power Supply: Users' favorite because of great cooling and firm performance. An ultra-quiet 120mm smart hydraulic bearing fan is set for the silence of the whole system in silence, even on heavy load scenarios. In fact, a complete modular structure keeps it very feasible to arrange your cables as wished. Most important, 80 Plus Gold gives it a go for utmost effectiveness, thus keeping power usage economized, subsequently reducing electric cost.
Why Buy This Gigabyte UD850GM PG5 850W 80 Plus Gold Full Modular Power Supply?
The
Gigabyte UD850GM PG5 850 Watt 80 Plus Gold Full Modular Power Supply responds to the increasing demands of energy efficiency, high performance, and modular design. It is designed for high-end gaming, multi-GPU systems, and workstations that require the most power, at an incredibly highly rated capacity of 850W. Featuring top-shelf cooling and silent operation, this is the ultimate choice for any power-hungry system.
Key Features
- 80 PLUS Gold certification means over 90% energy efficiency to ensure less energy waste, hence lower electric bills.
- Fully modular design for easy cable management, which enables much better airflow and system organization.
- 120mm hydraulic bearing (HYB) fan: efficiently and silently cool, even when fully loaded.
- 850W output capacity supports high-performance components like multiple GPUs and overclocked systems.
- PCIe Gen 5.0 compatibility: It can power the latest high-performance graphics cards.
- Multiple connectors: 6+2 PCIe, SATA cables, allow for a wide range of component compatibility.
Setup Steps of Gigabyte UD850GM PG5 850W Power Supply
- Turn off your PC and disconnect it from the power supply.
- Install the Gigabyte UD850GM PG5 850 Watt 80 Plus Gold Full Modular Power Supply inside the PSU compartment of your case.
- Screw it in to hold the PSU in its place. The 20+4 Pin cable is connected to the motherboard.
- The 4+4 Pin CPU power cable should be plugged into the CPU socket.
- Attach 6+2 Pin PCI-E cables to the graphics card(s), and connect SATA power cables for storage drives.
- Connect any remaining peripherals to the case via Molex and Floppy cables.
- Wire manage around to get good airflow, then fire it up to test if all goes well as expected.
