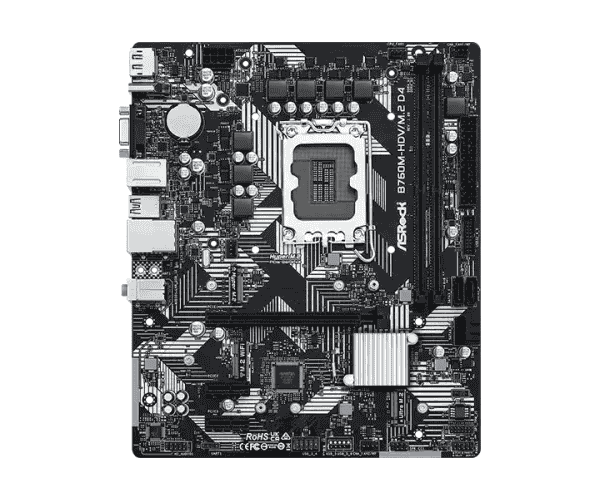

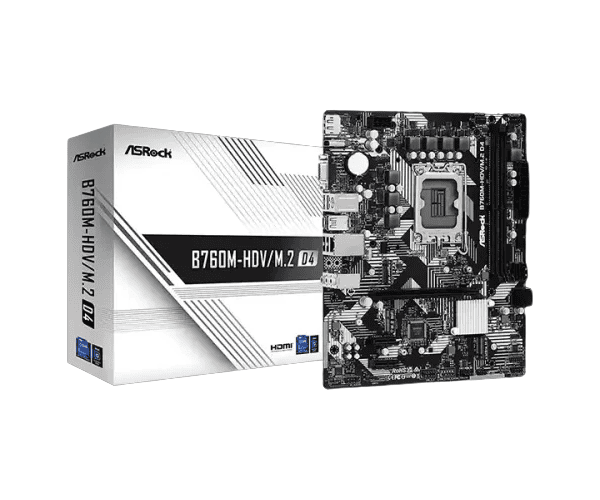

Overview of ASRock B760M-HDV / M.2 D4 Micro ATX Motherboard
The
ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard is designed for stability and performance, power-leading a PC build by an Intel 12th, 13th, and 14th Generation processor, for sure that would enable high performance on this motherboard thanks to the rich connectivity and sophisticated storage for gaming and productivity.
Specification
| Feature |
Details |
| Brand |
ASRock |
| Model |
B760M-HDV/M.2 D4 |
| Form Factor |
Micro ATX (9.6 x 8.6 inches / 24.4 x 21.8 cm) |
| Socket |
LGA1700 (Supports Intel 12th, 13th & 14th Gen Core Processors) |
| Chipset |
Intel B760 |
| Memory |
2 x DDR4, Max 64GB, Up to 5333+ MHz (OC) |
| Graphics Output |
1 x HDMI, 1 x DisplayPort, 1 x D-Sub |
| Expansion Slots |
1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 |
| Storage Support |
1 x M.2 Slot (PCIe 4.0 x4), 2 x SATA3 6Gb/s ports |
| LAN Port |
Realtek 1G LAN |
| Audio |
7.1 Channel HD Audio (Realtek ALC897 Codec) |
| Internal Connectors |
1 x 24-pin ATX Power, 1 x 8-pin CPU Power, 2 x USB 3.2 headers, 1 x Front Panel Audio |
| Back Panel I/O |
1 x HDMI, 1 x DisplayPort, 1 x D-Sub, 4 x USB 3.2 (Type-A, Type-C), 1 x Realtek 1G Ethernet, 3 x Audio jacks |
| Special Features |
Supports Intel 12th/13th/14th Gen Processors, PCIe 4.0, M.2 SSD Slot, User-friendly BIOS |
| Bundled Software |
ASRock APP Shop, ASRock Live Update & APP, SteelSeries GameSense |
Description
ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard in Bangladesh
The
ASRock B760M-HDV/M.2 D4 Micro-ATX motherboard is available in various online and offline hardware shops in Bangladesh. This would be a good choice for customers who want to build up an economical yet powerful system.
User Experience of the ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard
Most of the users who reviewed the motherboard rated it excellent for gaming and productivity, if not with other general uses when the
ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard came up. Due to its extremely strong power delivery system, installation simplicity, and feature-rich connectivity options, including outputs such as HDMI and DisplayPort, this motherboard has remained an endearing product of builders relative to value and dependability. BIOS is decent, and performing any system changes isn't such a big deal.
Why Choose the ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard?
One would find the
ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard quite ideal for those on the lookout for an affordable compact motherboard with the capability of running some pretty high-speed management, like storage and strong processor support, among others. This motherboard will give one excellent gaming, great content creation, and general usage supported by Intel's 12th, 13th, and 14th Generation Core Processors. Powered with support for PCIe 4.0, HDMI, DisplayPort, and Realtek 1G LAN, one will be set for performance and connectivity to cover him for seamless experiences.
Key Features
- Intel 12th, 13th & 14th Generation Core Processors: LGA1700 socket, fully supports all the latest CPUs from Intel for the best balance of speed and efficiency in processing.
- High-Speed DDR4 Memory: DDR4 memory supports up to 64GB, and a max of 5333 MHz when overclocked for smoother multitasking and gameplay.
- PCIe 4.0 Support: Ensuring faster data transfer with graphics cards and high-performance storage devices.
- Flexible Display Outputs: Besides being featured with HDMI, DisplayPort, and D-Sub, this display will go the extra mile in ensuring resolution output of up to 4K.
- Reliable Connectivity: It is featured with Realtek 1G LAN; hence, it promises great network connectivity in the most flawless way possible.
- Compact Micro-ATX Form: Small for smaller cases, yet full-featured.
How to Install an ASRock B760M-HDV/M.2 D4 Micro-ATX Motherboard
- Prepare the Case: Secure standoffs and prepare spacing for the ASRock B760M-HDV/ M.2 D4 Micro ATX Motherboard.
- Install CPU: Place your Intel 12th, 13th, or 14th Generation CPU into the LGA 1700 socket.
- Install RAM: Set RAM Sticks into available DIMM slots.
- Install Motherboard: Screw it using the line of screw stand-offs.
- Install Storage Devices: Secure your M.2 SSD into its slot or hook up your SATA drives.
- Power Hookup: Attach the 24-pin and 8-pin power connectors from your PSU.
- Connect Front Panel: Connect the front panel connectors, USB headers, and audio cables.
- Finishing Touches Double-check that everything is correctly in place; power it up to check BIOS settings for configurations and updates.
Why Buy From Crystal Vision Solution?
Crystal Vision Solution offers the
ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier for your PC build.
What is the Price of the ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard in Bangladesh?
The latest price of
ASRock B760M-HDV/M.2 D4 Micro ATX Motherboard in Bangladesh depends on quantity.
Crystal Vision Solution ensures this motherboard has the best market price in Bangladesh. Our product is 100% original and lowest price in Bangladesh. All kinds of services are the best in Bangladesh, and contact us for any information and latest price.
